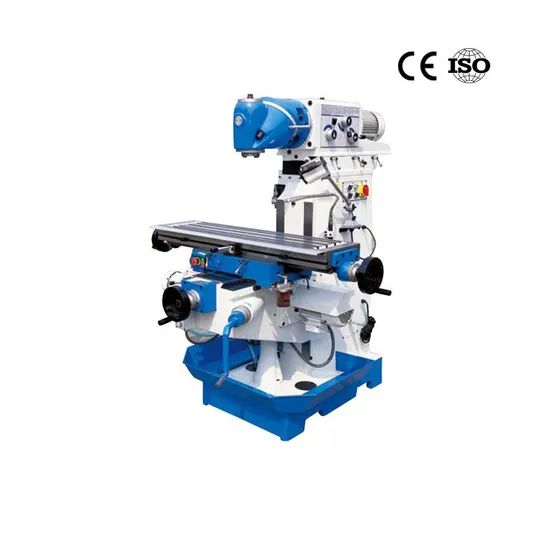

| Specifications | XQ6226A |
| Table size | 1120x260mm |
| T slot | 3 |
| Size (Width) | 14mm |
| Centre distance | 63mm |
| Max. load of Table | 250kg |
| Swivel of table | ― |
| Table Longitudinal travel(manual/auto) | 600mm |
| Table Cross travel (manual/auto) | 270mm |
| Table Vertical travel(manual/auto) | 380mm |
| Spindle taper | ISO40 |
| Spindle speed/step--Vertical | 45-166rpm/11steps |
| Spindle speed/step--Horizontal | ― |
| Max.end milling width | 125mm |
| Max. vertical milling Dia. | 25mm |
| Swivel angle of swivel head | 360º |
| Vertical spindle axis to column surface | 60-500mm |
| Vertical spindle nose to table surface | 100-480mm |
| Horizontal spindle axis to table surface | ― |
| Horizontal spindle axis to arm bottom | ― |
| Arm travel | 440mm |
| Longitudinal/cross feed | 24-402mm/min/9steps |
| Vertical/step | Manual |
| Longitudinal/cross rapid speed | 402 |
| Rapid Traverse vertical | Manual |
| Main motor | 2.2kw |
| Feed motor | 0.37kw(X/Y),0.55kw(Z) |
| Coolant motor | 0.04kw |
| Packing size | 160x152x222cm |
| N.W/G.W | 1350/1500kg |
