Welcome to visit

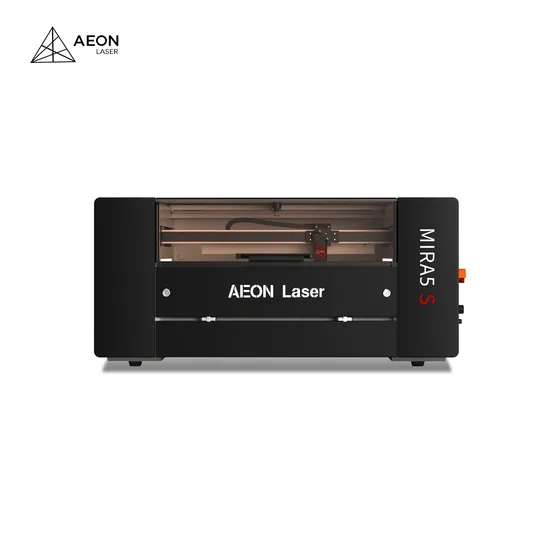

Aeon Water Cooling CO2 Laser Engraver Cutter for Advertising Craft Wood Industry

US$8,000.00
1-9 Pieces
US$7,000.00
10+ Pieces

Basic Info.

Model NO.
MIRA5
Application
Leather Industry, Crafts Industr, Advertising Industry, Education
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Automatic Grade
Semi-Automatic
Applicable Material
Nonmetal
Type
Oscillating Mirror
Laser Classification
Solid Laser
Engraving Method
Vector Engraving
All in One System
Built-in Water Cooling System, Exhaust Fan and Air
Fastest in Its Class
Scan Speeds up to 1200 mm/Sec and Cutting Speed
Multiple Interfaces
USB, Ethernet, and WiFi
Software
Lightburn/Rdworks
Working Area
500mm*300mm
Dual Worktable
Honeycomb + Blade for Laser Engraving and Cutting
Auto Focus
Integrated Autofocus
Electric up&Down
120mm
Transport Package
Woodbox
Trademark
Aeon Laser
Origin
Suzhou China
HS Code
8456110090
Production Capacity
4800/Year

Product Description


Our Advantages
Product Parameters
Parameters Model MIRA5 S MIRA7 S MIRA9 S
Working Scope Working Area (mm) 500*300mm 700*500mm 900x600mm
Z Axis Lifting Space 140mm 140mm 150mm
Max Lifting Capacity 15KG 25KG 25KG
Laser Tube Laser Tube Power Glass: 45W/60W
RF: 30W/60W		 Glass: 45W/60W/75W/80W
RF: 30W/60W		 Glass: 80W/90W/100W
RF: 30W/60W
Motion system Max Engraving Speed 3500mm/s (RF)
1200mm/s (Glass)		 4000mm/s (RF)
1200mm/s (Glass)		 4000mm/s (RF)
1200mm/s (Glass)
Acceleration 8G (RF)
5G (Glass)		 8G (RF)
5G (Glass)		 8G (RF)
5G (Glass)
Motor AC Servos (RF)
DC Steppers (Glass)		 AC Servos (RF)
DC Steppers (Glass)		 AC Servos (RF)
DC Steepers (Glass)
Accuracy Minimum Font Size(RF Tube) 1.0x1.0mm 1.0x1.0mm 1.0x1.0mm
Positioning Accuracy <=0.1mm <=0.1mm <=0.1mm
Configuration Working Table Honeycomb + Blade table Honeycomb + Blade table Honeycomb + Blade table
Cooling system Glass: Built-in 3000 chiller
RF: Air-cooled		 Glass: Built-in 3000 chiller RF: Air-cooled Glass: Built-in 5000 chiller
RF: Air-cooled
Fume Exhaust Fan Built-in inline 60W Built-in inline 75W Built-in inline 75W
Air Assist Built-in 45W Built-in 85W Built-in 85W
XY axis fully dust-proof √ √ √
Auto Focus √ √ √
Wireless Connectivity √ √ √
Red Dot Positioning √ √ √
Material Pass Through Door √ √ √
Camera 160° 5MP(2592x1944) 90° 5 MP (2592 x 1944) 90° 5 MP (2592 x 1944)
Tooless optical system √ √ √
Internal Memory 1G 1G 1G
System Smart Panel (monitoring function) × √ √
Fault alarm and diagnosis × √ √
Operation status light √ √ √
Water Flow Protection √ √ √
Water Temperature Alarm × × ×
Operating Software Rdworks/Lighburn(Optional) Rdworks/Lighburn(Optional) Rdworks/Lighburn(Optional)
Compatible Design Software CorelDraw/Illustrator/AutoCAD CorelDraw/Illustrator/AutoCAD CorelDraw/Illustrator/AutoCAD
Safety Laser Class Class 1 laser product Class 1 laser product Class 1 laser product
Cover lid interlock √ √ √
Side panel lid interlock √ √ √
Key lock √ √ √
Package Machine Dimension(mm) 900*700*410 1128*945*510 1328*1070*530
Net Weight (KG) 110 180 220
Gross Weight(KG) 125 230 290
Optionals Rotary Clamp/Lightburn Software /Air Purifier
