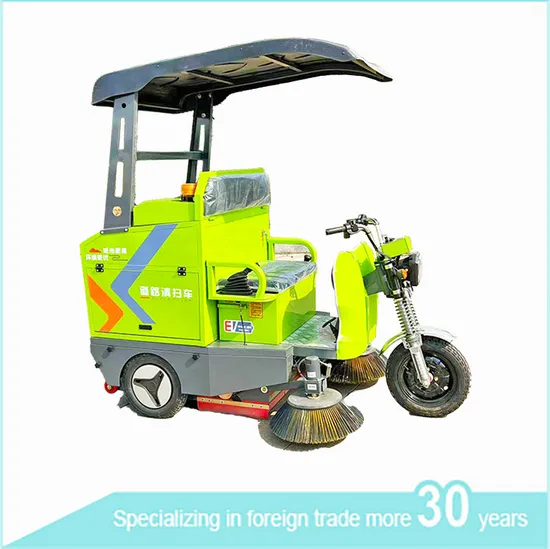

handle-Type Electric Three Wheel Sweeper

Product Description

Product Description ES-1400C Handel-type electric three wheel sweeper is an integrated garbage cleaning vehicle that combines sweeping and vacuum cleaning. It has the advantages of high work efficiency, low cleaning cost, good cleaning effect, high safety performance, and high economic return rate. It has been widely used in the cleaning work of roads in major, small, and medium-sized cities.

Performance Features 1,The cleaning efficiency can reach up to 35000 square meters per hour, which can replace more than 20 manual workers;2,220L back drawer-type sliding dust box, with a drawer design and caster wheels, making it easier to transport and dump3,Push-button operation, simple, comfortable, and excellent vision;4,High-quality filter with electric dusting function to eliminate secondary pollution;5,Comfortable padded seat with warning lights, turn signals, four-way LED lights, etc.;6,Flexibly adjust the ground pressure of the roll brush according to different working environments to enhance the cleaning effect;7,Non-inflated solid tires are more durable, effectively preventing slipping and explosion to ensure operation safety;8,It includes spray attachments that combine suction, sweeping, and spraying to effectively suppress dusting and thoroughly clean ground garbage and dust.
9,Vehicle backup camera,
10,Integrated and enlarged chassis, high work efficiency, built-in large dust filtration system, effective dust suppression, automatic dust vibration
11,High pressure atomizing spray combined with effective prevention of secondary dust
Product Parameters

Component Name	Serial Number	project	Parameter values/specifications
Complete vehicle	1	Model	ES-1400C handel-type electric three wheels sweeper
	2	Sweeping width	1400mm
	3	Main brush width	700mm
	4	working efficiency	9000-15000m²/h
	5	working hours	2-6h
	6	Dustbin capacity	160L
	7	Side-brush diameter	500mm
	8	Walking speed	0-20km/h
	9	Overall dimensions	2200*1400*1480mm
	10	water tank	80L
	11	Vacuum filtration area	6m²
	12	Tyre type	Front 350-12, rear 350-10 pneumatic tyre
	13	control mode	Intelligent control system (timed dust shaking function)
Warning lights	1	Headlight	Four way LED headlights
	2	tail light	Steering+braking+driving integrated taillights
	3	Alarm lamp	Top operation warning light
Storage battery	1	Type	Lead acid maintenance free (optional with lithium battery)
	2	Battery capacity	Standard 48V-63AH*4/80AH*4/100AH*4 lead- acid battery
Electrical machinery	1	Walking motor	800W intelligent gear change
	2	Rolling brush motor	1000W
	3	side-brush motor	2*100W
	4	Motor voltage	48V
Rearview mirror	1	model	Dedicated for sweeping vehicles
Note:Standard double fan, optional with sunshade. Machine performance: The combination of suction, sweeping, and spraying effectively suppresses dust and thoroughly cleans ground waste and dust. Place of use: Used for cleaning workshop, parks, streets, lanes, docks, property communities, warehouses, sports venues, schools, airports, and other areas in the factory area. The cleaning efficiency is 10 times that of the traditional manual cleaning, and one sweeper can replace 8-12 Cleaner.

Detailed Photos

---
