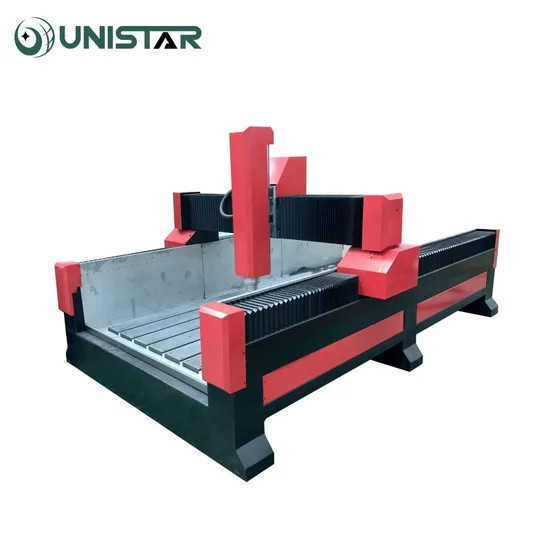

Heavy Duty Stone Engraving Machine for Granite Marble Stone Carving Tomb Engraving with CNC Control

Product Description

Product Description
Heavy duty Stone Engraving Machine for Granite Marble Stone Carving Tomb Engraving with CNC Control
Interduction
The Stone CNC Router is mainly used to process the marble,granite and so on.It also can process the wood and metal materials.It may take half a month to carve a stone manually, but with this machine, it can be completed in a few hours, which can greatly shorten the processing time and improve production efficiency. Main Features ★Heavy machine structure, good bearing capacity, not easy to deformation. Special machine bed design allows it to
carry more than 2000kg of materials.
★ The specially designed Z-axis can increase the unloading accuracy and completely solve the problem of Z-axis ball
screw fracture.
★ X, Y, Z axis is equipped with waterproof and dust-proof system, which can protect all components, reduce the
probability of machine failure, and extend the service life of the machine.
★ We use high-performance drive motors to ensure high speed and precision.
★The use of domestic well-known brand water-cooled spindle, low noise, good cooling effect, can adapt to long-term
work.
★ High quality Taiwan HIWIN square rail, low wear, high precision.
★ Easy to use Mach 3 controller works with all industry standard CAD/CAM software
★ Z axis high-precision TBI ball screw, good transmission effect.
Product Parameters

Item	Standard Specifications 1325
X,Y,Z Working Area for Panel	2500*1300*300mm
Spindle Power	5.5KW Powerful Water Cooling Spindle
X,Y,Z Traveling Positioning Accuracy	±0.025mm
Table Surface	Aluminum T-slot table
X,Y,Z Rail and Transmission	X/Y rack and pinion Z High precision TBI ball screw
Max. Rapid Travel Rate	30,000mm/min
Max. Working Speed	20,000mm/min
Drive Motors	Yako stepper motor and drivers
Working Voltage	380V 3 phase or custom made.
Command Language	G code
Operating System	Shanghai Weihong NC-Studio
Interface	USB
Software Capabilities	Vectric Aspire, Type3, Ucancam, Artcam, AlphaCam, Powermill,etc.
Running Environment	Temperature: 0ºC~45ºC Relative Humidity: 30%~75%

Detailed Photos
Machine Structure

Machine Structure is welded by thick steel tube , through special fine processing , whole-structure stable combined and good rigid, guarantee the carving accuracy, make sure no deformation after long time using.
Motor And Drivers

YAKO stepper motor and drivers
It has overheat protection and is safer. And it has low noise and high performance.
Inverter

Shanghai Fuling inverter
Reliable quality, even in harsh environments can also work stably for a long time.
5.5KW High Frequency Water Cooling Spindle(7.5kw For Option) The M Series machine comes standard with a 5.5kw high frequency water cooling spindle. And is fully programmable with speeds from 6000 to 24000 RPM.
Rail and Transmission

The machine adopts Taiwan Hiwin square rail, which is more than twice durable. X and Y axis is drivern by rack and pinion. The Z axis is drivern by ball screw.
The Electronics Of The CNC Router All the electrical components are housed and wired in a electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet. In addition, the cabinet serves as a work bench for the tools required.
Samples
Company Profile
UNISTAR CNC Co., Ltd. was established in 2002, specializing in CNC machinery with rich experience! The company has two factories: CNC Router and Laser Machine factories and plants. UNISTAR CNC is comprehensive in the production, designing, manufacturing, trading and supplying service of CNC machine, and provide high quality and good efficient CNC machines worldwide. With a strong staff team, "Brand UNISTAR CNC " gained success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment. The production facilities occupies China's forefront in development and expansion. UNISTAR CNC Products are widely used in the fields of advertising, furniture, gifts, decoration, packaging etc., and materials of wood, acrylic, stone, fabric, leather metal, etc."UNISTAR CNC "is well-known not only in China, but also in Russia, Europe, Southeast Asia, Middle East, Africa, the Americas, India and other more than 120 foreign countries. UNISTAR CNC is with advanced and powerful machining capability. We have imported high precision 5 axis CNC Machining center to process the machine frame, the top milling, side milling, and side drilling will be finished in one machining center, which ensure our CNC machine is with higher precision, Moreover, the small machine parts are machined by American imported Haas ATC CNC Center. UNISTAR CNC has strong technical strength. We has more than 10 engineers to develop new machines every year, and our engineers will design the machine according customer's special request. We have more than 20 after-sale service engineers to serve our customers 7*24. UNISTAR CNC always adhere to the principle --- First class reputation, first-class service and excellent products. Customer Visiting
Packaging & Shipping
FAQ
Q1: What's your date of delivery?
A2: For standard machine, about 15 working days; For customized machine, about 20 working day.
Q2: Do you have CE document and other documents for customs clearance
A2: Yes, we have CE, Provide you with a one-stop service. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
A3 :How to install and run the machine?
Q3: Our technician have installed the machine before shipping. For some small parts
installation, we will send detail training video, user's manual along with the machine.
95% customers can learn by themselves.
Q4: How to solve it if there is some problem or parts broken during operating metal tube laser cutting machine
A4: If machine technical problem , we have engineer online support service , through remote control , video show , to help solve problem , if parts broken ( not consumption parts ,we will take place a new one as soon as possible .
Q5: I don't know which kind of cnc router machine is suit for me.
A5: Just tell us your working industry?
What kind of material you need to cut
And the size of wood board , then we have professional sales to recommend you best suit wood engraving machine .

---
