Basic Info.
Certification
ISO9001: 2000, CE
Transport Package
Container
Production Capacity
1000 Pieces a Year
Product Description

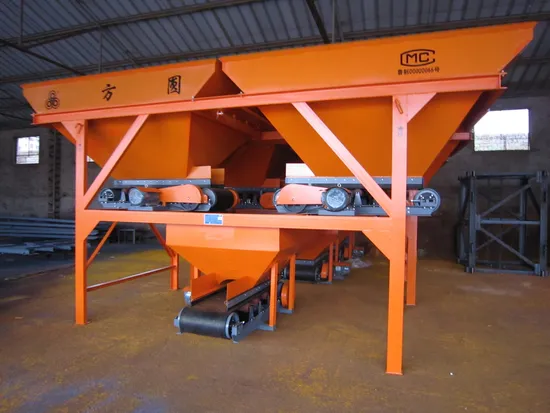

PLD1200 series concrete batching machine uses electronic weighing, weighing accurate, high batching accuracy, high speed, strong control features; is the ready-mix concrete with the use of automatic batching equipment.
1.weighing system: The use of direct weighing sensor metering mode, accurate and reliable metering;
2.Storage Bin: Generous Storage Bin, feeding width 3100mm, meet 50 loader feeding;
3.Conveyor Belt: Belt Conveyor adopts no joint ring belt, guarantee the service life;
4.Control System, advanced batching control system, equipped with Special Operation Remote control handle, use more convenient!
5.calibration scale: Before leaving the factory are in the designated calibration scale area to electronic scale with weight to verify the accuracy of the measurement system!
6.the Structure Form: Many kinds of structure form, satisfies the export packing and the road freight transportation request!
| Item | Unit | Parameter | Parameter | Parameter |
| | | PLD1200 | PLD1200-III | PLD1200-IV |
| Nominal volume | L | 1200 | 1200 | 1200 |
| Aggregate chamber | | 2*3m³ | 3*3m³ | 4*3m³ |
| Weighing capacity | kg | 1500 | 1500 | 1500 |
| Loading height | mm | 2780 | 2780 | 2780 |
| Loading width | mm | 3100 | 3100 | 3100 |
| Total power | kw | 6.6 | 10.6 | 14.6 |
| Dimension(L*W*H) | mm | 6270*2290*2900 | 9380*2290*2900 | 12490*2290*2900 |
>>
