Yq-60s Hot Melt Taping Machine, Diving Suit Sewing Hot Air Seam Sealing Machine

US$1.00-3,000.00 1 set (MOQ)

Basic Info.

Model NO.
YQ-60S
Application Place
Factory
Applicable Thickness
Middle Thickness Material
Drive
Foot Step
Thread Number
Single Thread
Needle Number
Single Needle
Stitch Type
Lock Type
Air pressure
0.35-0.6Mpa
Upper roller distance
18-30 mm
Transport Package
Wooden Case
Specification
1350*600*1550mm
Trademark
AOCHI
Origin
China
Production Capacity
500set/Month

Packaging & Delivery

Package Size
140.00cm * 70.00cm * 160.00cm
Package Gross Weight
200.000kg

Product Description

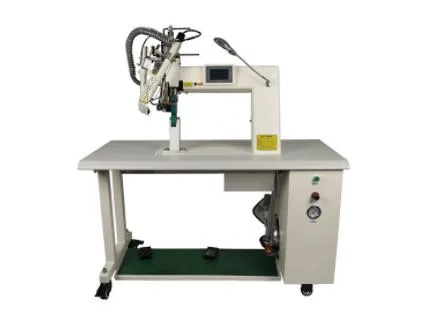

YQ-60S Hot Melt Taping Machine, Diving Suit Sewing Hot Air Seam Sealing Machine
Product Description Features
1-Controlled by programmable PLC with high definition display, English touch interface, process can be modified according to
users' requirements.
2-Auto controllable temperature with high stability slightly varies between±2°C, Warning device for
temperature upper limit is installed to protect heating wire.
3-It has the functions of synchro drive of the upper and lower wheel chain, auto compensation, and auto reverse.
......
Application
Nylon-PVC, nylon-PU, high-class rain coats, wind coats, snow-suits, tents, military waterproof coverings, waterproof bags, motorcycle covering and boat covering, etc.
Detailed Photos
Product Parameters
Power consumption 220V/50Hz
Rated output power 2000W
Working speed 1-24 meter/min
Tempreture <700°C
Air pressure 0.35-0.6Mpa
Upper roller distance 18-30 mm
Roller width 25.4mm ( Special width can be ordered )
Adhesive tape width 16-24 mm ( Standard )
Size of machine (L * W * H ) 1350 * 600 *1530 mm
Net weight of machine 165Kg
Gross weight of machine 200kg
