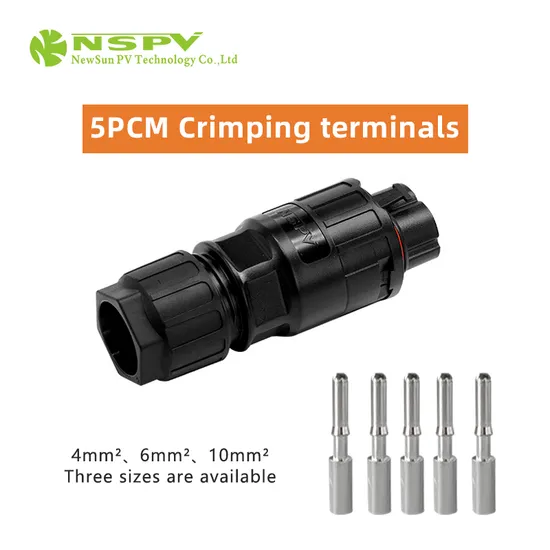

Lec Power Connection and Waterproof IP68 5 Pin Cable Male Connector

Product Description

Product Description

Product Specifications
Insulation material			PPE/PA		Safety degree			II
Rated current			Max.50A(10sqmm)		Flame class			UL94-V0
Rated voltage			500V AC		Ambient temperature range			-40ºC…+85ºC(IEC)
Test voltage			4kV		Suitable cable cross sections			2.5~10mm2 /14~8AWG
Contact resistance			≤0.25mΩ		Connecting system			Screw/crimping connection
Contact material			Copper,Tin plated		Insulation resistance			≥1000 MΩ
Degree of protection			IP68		Suitable cable OD Max.			Φ21mm
Contaction diameter/number of contact			Ø4.0x5		Standard			EN 61984

Detailed Photos


Packaging & Shipping
Company Profile NewSun PV Technology Co., Ltd(NSPV) is a company with modernization management, which provide key one-step solution with design, research and development, mass production and sales. The project of our company is divided into two major parts: Firstly, the design, integration, installation and maintenance of PV solar power station, as well as photovoltaic engineering procurement and construction(EPC). Secondly, the development, production and sales of components and parts for PV solar system.
Our products include photovoltaic system connection, system control, system protection, system optimi-zation, etc., which are in line with TUV, CE and other relevant standards. The field involves photovoltaic system application, wind and solar energy complementary, micro-grid integration and others. " Exploration and innovation,quality,honesty and pragmatism , win-win cooperation, social responsibility " is the consistent spirit for NSPV people .
Offer high quality, economical cost, safe solution and reliable technology with optimization in energy conservation and environmental protection is the solid goal for photovoltaic component manufacturers and system installers include NSPV .
We will continuously make contribution to " Green energy" and " Environmental protection" for establishing humans better tomorrow.
FAQ
Q: How can I trust you and your company?
A: Dongguan Newsun PV technology Co.,Ltd has been established for above 13 years, our product were sold in many countries with good feedback, good quality, competitive price which mostly have been approved by TUV, CE and other EU institutions. Furthermore, our company has passed ISO9001 quality management system certification, hold the high-tech enterprise certificate and a number of patents.
Q: What's your shipment method?
A: We can ship by express, air, sea and train. Normally we checked and compared, then provide customer the most proper shipment method.
Q: If I want to release order, what's the process?
A: Thanks. You can send inquiry to us by Made-in-China, or send us by e-mail. We will reply within 24hrs.
Q: What's your contact information?
A: Our Add:14F, 12Building, No.52 Fuhai Road, Xiagang Community, Chang'an Town, Dongguan City, Guangdong.




Looking forward to your contact, thank you!

---
