PS Crown Cornice Moulding Extrusion Production Line for Making Ceiling Coving

Product Description

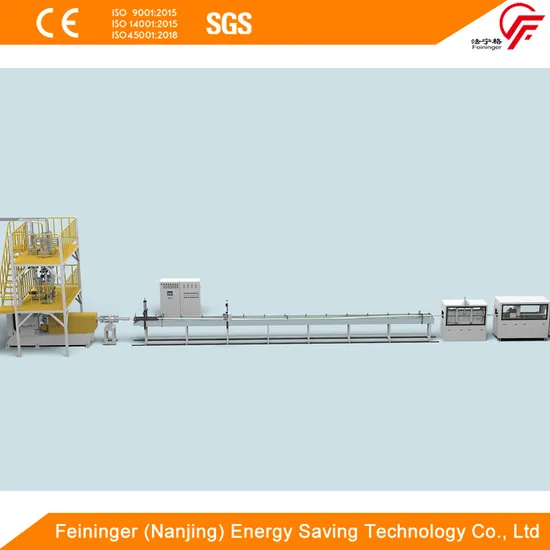

PS Cornice Moulding Production Line
Feininger PS decorative lines making machine is rather low density, whereas our production line has high compressive strength and reliable quality! We have the temperature control of the foaming agent injection systems and heat exchanger, and we only use CO2 as foaming agent!
Specification

Model	Extruder Type	Length/ Diameter	Foam output (kg/hr)	Blowing Agent (Gas)	Thickness of Profile (mm)	Width of Profile (mm)
CS-75T	TE75	22-26	20-80	100% CO2	5-15mm	25-150mm
CS-85T	TE85	22-24	40-150		8-20mm	40-220mm
CS-95T	TE95	22-24	60-250		8-20mm	65-300mm

Equipment

Basic Configuration	Automatic Feeding System
	Twin Screw Extruder
	CO2 Foam Agent System
	Heat Exchanger
	Slot Die
	Cooling Sink
	Printer
	Haul-off Unit
	Widthwise Cutting Machine
	Packing Platform
Optional Equipment	Heat Transfer Machine
	Embossing Machine

Successful Case
Production Process
1. Add the raw materials to be processed in a certain proportion and pour it into the mixer.
2. After regular mixing and homogenizing, they are transported to a quantitative feeder bin by a feeder.
3. The feeder is evenly fed to the outlet of the main extruder according to the addition amount set by the customer.
4. The raw material is conveyed to the heat exchanger by the high-temperature screw of the main engine, and the heat is
homogenized.
5. Then the material is conveyed to the extrusion equipment after the die, in which carbon dioxide foaming agent is injected
quantitatively.
6. The material model of high-temperature products made by mould is formed after cooling into a two-stage shaping jacket.
7. Then the material is cooled through a water channel.
8. The products are drawn to a tractor and cut with a fixed length.
9. Finally, it is formed into a qualified product and packaged and sold.
Our Products
Decorative XPS profiles have become a very popular finishing product in the last decade or so. Just like skirting boards it is one of the last finishes that goes into a house but one that makes a big difference. If you're looking for quality and cost effective XPS profile line, you have found the right place!
Packing
* Packing Way of XPS Cornice Coving Production Line with CE/ ISO;
* Wood Pallet for Main Extruders;
* Wooden Case for other parts;
* Container Loading; Sea-worthy.
Certification
Company Profile
FAQ How many meters produce per minute of the xps cornice machine?
Different densign and size, the capacity is different, for 45mm width cornice, about 15-20meters per minute, for 58mm width cornice, about 12-15 meters per minute, for 130mm width cornice, about 6-8 meters per minutes.
How many people need for the whole production line?
2 workers needed for the whole line. Our line is automatic, including automatic feeding system! the manual process is for packing.

How many densign could be produce with this machine?
We have 20 standard moulds. You also could produce any densign your market required just by providing your moulds design, then we make it for you!

Which foaming agent (gas)could be used in this line?
100% CO2 SUPPORTED! In China, only we can do this technology!

What's the density of the cornice this machine produced?
The normal density is 60-80KG per cubic meters.

What's the raw material?
GPPS (General Purpose Polystyrene).

Whether the cornice could be anti-flaming or not? Whether the cornice could be antioxidant or not?
Yes! It could be anti-flaming and antioxidant by mixed special material.

Do you have and supply the raw material? If not, could you find the raw material for us?
Yes, we could find material supplier for you, for the whole production line, it need about 1x40GP + 1x20ft container for shipping, and we could take some material for you, about 2 to 3 Tons .

How about the shipping, packing and payment ?
It need about 1x40GP + 1x20ft container ,standard seaworthy packing. The payment is by TT .

---
