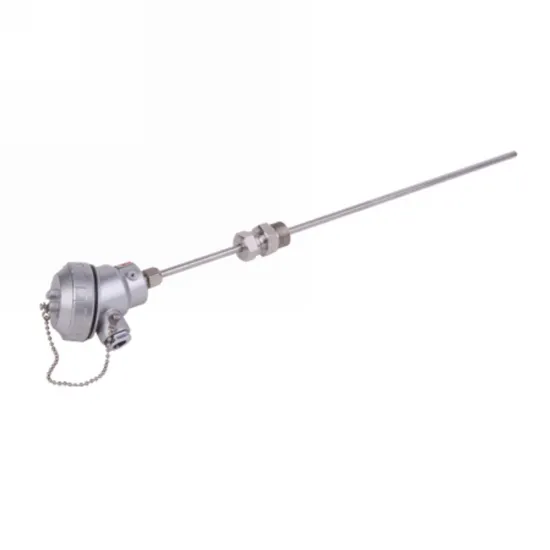

Cj Thermocouples and Thermal Resisitances Industrial Temperature Sensor (WRN, WZP)

Product Description

New measuring temperature thermocouple for kinds of machineries of package, clothing, printing,
rubber and food, etc., and for electric furnace industry. They can measure temperatures of liquid, steam,
gas and solid in producing. Characteristics are shock resistant, high-temperature resistant and long life.
Used for temperature measuring and automatic controlling in scope from -200 to 1600oC.
Industrial sensor
Specification: E: 0-800C; K: 0-1200C
S: 0-1600C; R: 0-1600C; B: 0-1800C; PT100
Make according to the customer
Sensor Meaning of the model code
W(1) (2) (3) (4) (5) (6) (7)
(1) Graduation Number:
RN: Nickel chrome nickel silicon thermocouple (K)
RE: Nickel chrome cupreous nickel thermocouple (E)
RF: Iron cupreous nickel thermocouple (J)
RP: Platinum rhodium12 platinum (S)
RR: Platinum rhodium30 platinum (B)
RT: Copper cupreous nickel (T)
ZC: Cupreous thermo resistor (CU50)
ZP: Platinum thermo resistor (PT100)
(2) Type:
X ----compact type (this item cancel the black space)
B---- standard type (blank)
K---- Armor type
(3) Mounting method:
Compact type:
1---- tube type
2----pressure type
3---- screw type
4---- coil type 5- simple type
Standard type/ Armor type
1---- without fixing device
2---- fixed screw thread
3---- movable screw thread
4---- fixed flange 5- movable flange
(4) Connecting box form
0---- without connection box
1---- simple connection box
2---- splash proof connection box
3---- waterproof connection box
4---- blast proof connection box
5---- BNC connector jack connection box
(5) The form for measure end
0---- with no request
1---- connect shell
2---- outcrop model
3---- insulation type
(6) External diameter (millimeter)
0----Φ16
1----Φ12/M12
2-Φ2
3-Φ3
4-Φ4
5-Φ5
6-Φ6/M6
7-Φ7
8-Φ8/M8
(7) With transfer output:
B: 4-20mA B: 0-10mA B: 1-5V B: 0-5V
Model and specification:

Type	Code name	Measure range (ºC)	Class	Allowable deviation t (ºC), the greater one of two	Specification length
K Nickel chrome-nickel sillicon	WRN	- 40~1000	I	±1.5ºC or ±0.4%t	0.5M,0.75M,1M,1.5M,2M,2.5M,3M and so on. Note: The small thermocouple, thermal resistance sensor measuring range does not exceed 400ºC. Sensor measuring range according to the real object.
		-40~1200	II	±2.5ºC or ±0.75%t
E Nickel chrome cupreous nickel	WRE	-40~800	I	±1.5ºC or ±0.4%t
		-40~900	II	±2.5ºC or ±0.75%t
J Iron-cupreous nickel	WRJ	-40~750	I	±1.5ºC or ±0.4%t
			II	±2.5ºC or ±0.75%t
S Platinum rhodium12 platinum	WRP	0~1600	II	±1.5ºC or ±0.25%t
B Platinum rhodium30 platinum6	WRR	600~1700	II	±1.5ºC or ±0.25%t
T Copper-cupreous nickel	WRT	-40~350	I	±0.5ºC or ±0.4%t
			II	±1ºC or ±0.75%t
CU5O Cupreousthermoresistor	WZC	-50~150	II	±0.3ºC or ±0.6%t
PT100 Platinum thermoresistor	WZP	-200~650	I	±0.15ºC or ±0.2%t
		-200~850	II	±0.3ºC or ±0.5%t

The sensor mounting
Sensor head will be placed on the need measuring temperature point, direct measure the point
temperature, secondary use with a variety of temperature meter.
Sensor is installed in the workpiece position as much as possible, to avoid the installation of
next to the door or near the heating object. The insertion depth accord with actual need. The
installation of sensor maintain a position as vertical as possible, but in the case of flow
measurement must install reverse tilt. If you need fix sensor, the container wall can be opened a
fix larger hole than the sensors installation thread diameter, install the sensor fixed on the
container with the nut attached. When the measured object is non- gas or liquid, the temperature
sensor make some close contact with the measured object, in order to improve response speed
and reduce the transmission error.
If the thermocouple output wire need lengthen, you should use the relative thermocouple
ompensation wire with the same polarity, and then connect with the secondary meter. Sensor wire
or compensation wire should directly connect to the secondary meter connecting terminal, to avoid
the use of ordinary wire, otherwise the error will be. Bending connection as little as possible to extend
the use time, frequent bending sensors must be designed for.

---
