Good Condition Excellent Material MDF / HDF / OSB Particle Board Chipboard Production Line

Product Description

Good Condition Excellent Material MDF / HDF / OSB Particle Board Chipboard Production Line

01 WHY CHOOSE US?

1. With many years production experience, we can ensure each osb board machine be suitable, good and strong
2. With advanced production equipment and technology, ensure the whole osb making machine production process fluently, good and correct.
3. With experienced workers, engineers, technicians, to design, improve our machine
4. Insist use good material, parts and accessories, ensure our machine good quality and long life span
5. With good after sales service, make sure you will get quickly response anytime when you meet questions

02 PRODUCTION DESCRIPTION

Product Principle
<1>PREPARE STAGE
Wood chip sorting machine: Used to sort and screen wood chips obtained from sawmills, woodworking factories, etc., to remove impurities and unqualified wood chips.
Flaking machine: Make the small chips into wood strands
Drying machine: Dry the wet wood strands
Vibrating screen: Screen big wood strands, suitable strands, and chips
<2>MIXING AND FORMING STAGE
Mixer: Equipment used to mix wood chips with adhesive and other additives uniformly, ensuring that the mixture has a certain uniformity and moisture content.
Forming machine (Particle board forming machine): Used to press the mixed wood chips and adhesive into a board shape, usually using continuous or batch forming machines for molding.
<3>PRE PRESS&PRESS STAGES
Pre-press machine: Pre-press particleboard, and make it in a certaine initial strength;
Hot press: Press particleboard in a high pressure and heating temperature
<4>POST-PROCESSING STAGE
Sanding machine: Sand particleboard surface, and make its surface smooth and thickness accurate

03 FULL MACHINE PARAMETERS

<1> Drum Chipper
Inlet size	240*750mm(H*W)
Blade quantity	2pcs
Knife roll diameter	800mm
Power	132kw
<2> Ring Chipper
Wood strands thickness	0.4-1.0mm
Capacity	5000-8000kg/h
Knife length	449mm
Power	250kw
<3> Triple Pass Drying Machine
Cpacity	10000kg/h
Original moisture	≤80%
End moisture	2%
Power	440kw
<4> Vibrating screen
Screening cloth	2
Screening area	12 m2
Screening capacity	70m3/h
Power	11kw
<5> Gluing
Capacity	500m3 /per day
<6> Forming machine
Surface forming machine	2 sets
Capacity	2 *45m3/h
Core forming machine	1 sets
Capacity	65m3/h
Forming width	1300mm
Forming thickness	30-120mm
<7> Continuous press
Convey speed	10-30m/min
Working height	1250mm
Belt width	1500mm
Power	75kw
<7> Hot press
Pressure	1200 ton
Hot plate size	2650*1680*120mm
Layers	22
Heating medium	Oil
Heating temperature	≤180ºC
Closing time	10s
<8> Sanding machine
Max sanding width	1300mm
Sanding thickness	3-50mm
Sanding belt size	1350*2800mm

For this production line, it can produce 100000m3 one year.
And we can produced as your capacity requires

04 PRODUCT DETAILS

Rotary drum dryer, for drying the wet wood strands/shavings, because their original moisture is high, it is not suitable for making particleboard, therefore, after be dryed by drum dryer, their end moisture will be about 2%, it is suitable and good for making particle board.
Glue blender, For spreading glue on wood strands, seperately spreading glue on surface strands and core strands

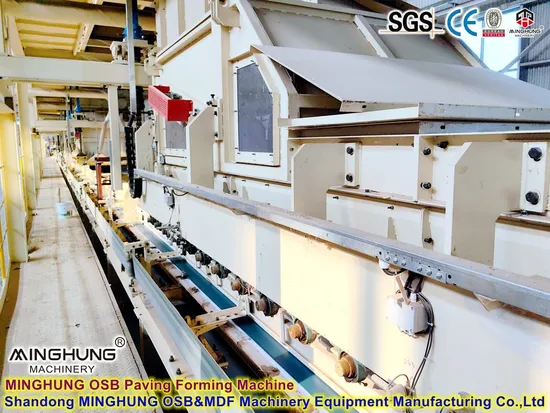

Mat forming machine, for spreading glue on wood strands, seperately spreading glue on surface strands and core strands
Continuous pre press machine, for pre pressing the particle board and make it be forming, also discharge inside air.
Multi opening hot press machine, for pressing the particleboard be in required thickness and be solid and strong.

05 PACKAGING&SHIPPING

06 AFTER SALE SERVICES

<1> Machine Installation:
We can send engineers go to install machine, degue, and teach your workers
<2> Warranty:
1 year
<3> Factory layout:
After machine production start, we can make factory layout for you
<4> If meet problem when operation machine
Contact us at the first time, our engineers will help check and solve quickly

Welcome contact us for more information if you are interested

---
