Chemical Explosion Proof Motor Jacket Chemical Reactor 100L

Product Description

Product Description

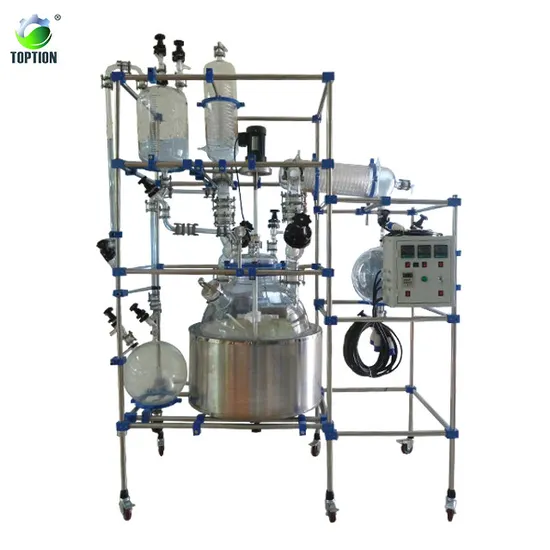

chemical Explosion Proof Motor Jacket Chemical Reactor
The double-layer glass reactor is a double-layer glass design. The inner layer of the double-layer glass reactor / double-layer glass reactor is placed in the reaction solvent to make the stirring reaction. The interlayer can pass different cold and heat sources (frozen liquid, hot water or heat Oil) to do the heating or cooling reaction. In the set constant temperature conditions, in the closed glass reactor, according to the use of requirements under normal pressure or negative pressure conditions for stirring reaction, and can do the reaction solution reflux and distillation, is a modern fine chemical plant, bio-pharmaceutical and New material synthesis of the ideal pilot, production equipment.
Product Parameters

Type	Capacity	Liquid material inflow	Condenser	Temp. measure	Multi-function valve	Solid charging port	Stirring paddle	Reactor lid flange	External diameter	Power
TOPT-1L	1L	24# 0.25L	24#	14#	-----	-----	¢7mm Anchor type	150	150	40
TOPT-2L	2L	24# 0.25L	24#	14#	-----	-----	¢7mm Anchor type	150	180	40
TOPT-3L	3L	24# 0.25L	24#	14#	-----	-----	¢7mm Anchor type	150	200	40
TOPT-5L	5L	24# 1L	24#	19#	24#	-----	¢10mm single layer two-blade paddle type	180	230	60
TOPT-10L	10L	34# 1L	34#	DN15	DN25	-----	¢16mm single layer three-blade paddle type	265	290	120
TOPT-20L	20L	34# 1L	34#	DN15	DN25	-----	¢16mm single layer three-blade paddle type	265	330	120
TOPT-30L	30L	34# 1L	34#	DN15	DN25	-----	¢16mm single layer three-blade paddle type	265	365	120
TOPT-50L	50L	34# 1L	34#	DN15	DN25	DN80	¢16mm double-layer three-blade paddle type	265	410	140
TOPT-100L	100L	5L 24#	DN40 ball mouth	DN15	DN25	DN80	¢16mm three-layer three-blade paddle type	340	500	250
TOPT-150L	150L	5L 24#	DN40 ball mouth	DN15	DN25	DN80	¢16mm three-layer three-blade paddle type	340	600	400
TOPT-200L	200L	10L DN25	DN50 ball mouth	DN25	DN25	DN100	¢16mm three-layer three-blade paddle type	340/ 440PP flange	650	400

Our Advantages
1. GG17 (3.3) borosilicate glass, with good chemical and physical properties.2. The evaporation and back-flow of reaction material can be controlled.3. Reacting Temperature: -120~300ºC4. The design of a large bottle mouth, easier to clean.5. It can be used as a distillation synthesis device.6. The sealing performance is 0.098 Mpa.7. LCD display, easier and more convenient to measure temperature.8. Single layer or double layer PTFE Stirring leaf, corrosion resistance
