3 Rows Tractor Mounted Maize Harvester

Product Description

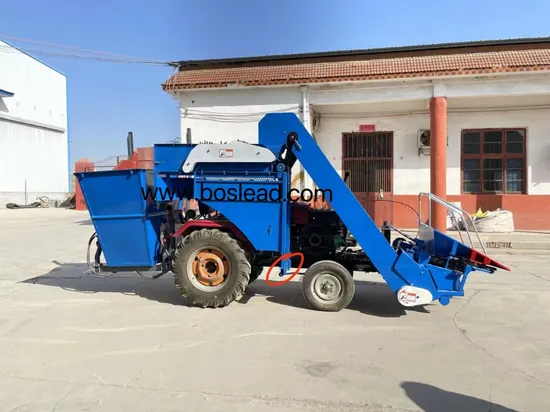

Boslead Corn Harvester is to be operated when being hung clenching the front bracing of a four-wheel tractor and driven by rear power take-off (PTO). It is applicable to ear plucking and straw chopping in corn fields when the ears of corns are ripe. This machine is small in size, high in efficiency, light in weight, easy to operate and can lead to less loss of ears.

Easy to Operate
Strengthen reel chain, thicken snapping rolls, and are equipped with vertical lift operation gear, which makes the operation very easy and convenient.
Safe and Productive Dual knife edges design, reduce the frequency of knife changing and polishing, which ensures a high harvesting efficiency. No need to worry for grasses in the field as the machine has an anti-grass-intertwined designed knife rolls (our patent), keep the machine safer and more productive!.
Flexible in Row Space
Innovation design of the reel chain sets ( our patent) makes the harvesting width adjustable increasing harvesting width and flexiblity of the width
Boslead Corn Harvester BOS-3BM Specification

Production rate	0.8-1.5acre/hour
loss rate	≤ 2%
Speed of main shaft	1500rpm
RPM	≥1140rpm
Mating Power	35HP or above multi-cylinder diesel engine
Main machine Overall dimension	1250x1600x950mm
Machine weight	770Kg
Number of rows	3Rows
Range of rowledge	55-65cm
Minimum Corn harvesting height	65cm
Straw chopping length	3-8cm
Stubble height	<8cm
Storage silo volume	1m³
Maximum downloading Height of Storage Silo	170cm
Staw Chopping Rate	≥98%
Harveting Spead	4.3Km/h
Minimum height from land to Machine bottom	7cm

---
