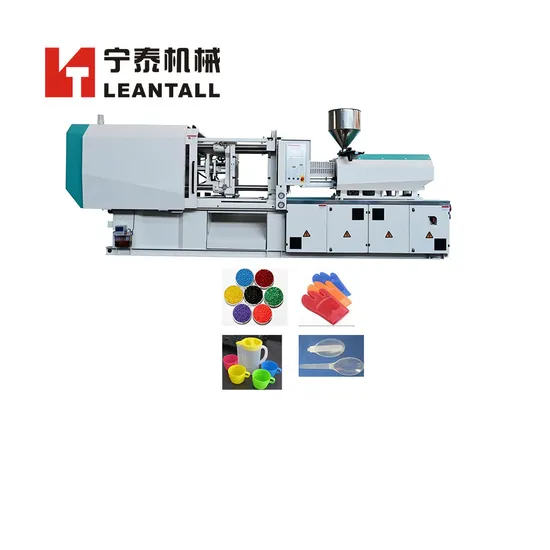

Nt320 Plastic Injection Molding Machine Added Infrared Heating Coil and Servo Motor System for Manufacturing Industry

Product Description

Product Parameters

Part	Name	Unit	NT320
Injection Unit	SCREW DIAMETER	mm	60	65	70
	SCREW L/D RATIO	L/D	21.6	20	18.5
	INJECTION STROKE	mm	300	300	300
	NJECTION SPEED	Mm/sec	107	107	107
	SHOT VOLUME(THEORETICAL)	CM3	848	995	1154
	INJECTION WEIGHT(PS)	g	771	905	1050
	INJECTION PRESSURE	Mpa	176	150	129
	INJECTION RATE	cm³/sec	302	355	412
	SCREW SPEED	rpm	180
Clamping Unit	CLAMP FORCE	Kn	3200
	OPEN STROKE	mm	620
	SPACE BETWEEN TIE BARS	mm×mm	660X625
	MAX.MOULD HEIGHT	mm	630
	MIN.MOULD HEIGHT	mm	230
	EJECTOR STROKE	mm	160
	EJECTOR FORCE	Kn	101
	EJECTOR NUMBER	N	13
Others	MAX.PUMP PRESSURE	Mpa	16
	SEVRO DRIVE POWER	Kw	39
	HEATING POWER	Kw	18.5
	MACHINE DIMENSION(L*W*H)	m×m×m	6.45*1.65*2.35
	MACHINE WEIGHT(ESTIMATE)	T	9

Product Description
Packaging & Shipping
Company Profile
Our Advantages
Q: Are you manufacturer or trading company? A: We are manufacturer with decades experiences,located in Zhejiang province. Q: What is the product range? A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc. Q: Where is your main selling market? A: We have business domestic,USA,Russia,Indonesia,Egypt,Turkey ,Uzbekistan, Pakistan,etc. Q: Will you offer field installation and operator training at the buyer's factory? A: Yes,we will arrange our skilled engineers for filed installation and training. Q: What is the delivery time(equipment production time)? A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment. Q: Do you also have source for molds and spare parts? A: Yes,we can offer with the competitive quality and reasonable price. Customized as required. Q: What is the standard of package? A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.

---
