New Generation Construction Shotcrete Equipment Electric Diesel Emergency Mining Shotcrete Machine

Product Description

Product Description

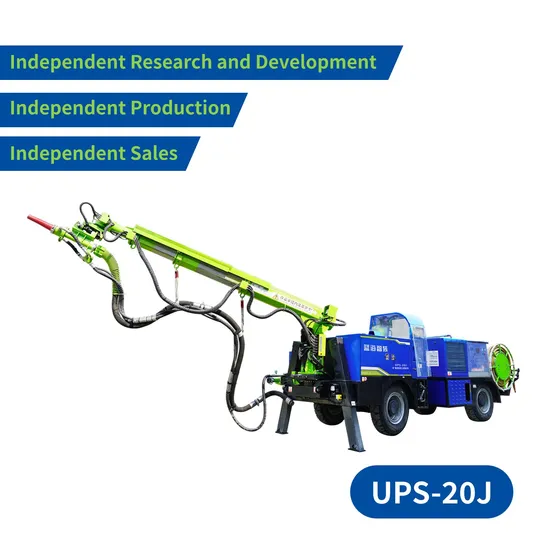

The UPS-20J The UPS-20J mining shotcrete truck is a revolutionary piece of specialized equipment, meticulously developed and upgraded from initial concrete shotcreting technology to meet the demanding construction conditions of domestic mines. With an impressive maximum shotcreting volume of 20m³/h, this powerhouse is a go-to choice for wet shotcreting operations, offering essential support for concrete in underground mines as well as small and medium-sized underground projects. This robust equipment stands out for its substantial shotcreting volume, innovative pipe blockage prevention, minimal rebound, and its reliable, stable performance, making it indispensable for any large-scale construction endeavor.
Featuring a cutting-edge dual system of diesel and electric power, the UPS-20J ensures uninterrupted construction progress through its electric construction capabilities and reliable diesel emergency response, guaranteeing consistent performance in all situations.
The UPS-20J is equipped with advanced wireless remote control, allowing for precise manipulation of the mechanical arm. This results in swift, efficient, safe, and energy-saving operations, ensuring impeccable accuracy and productivity.
Outfitted with a substantial 400L accelerator tank, the UPS-20J is designed to meet the demanding construction volume requirements for larger sections, providing sustained and effective shotcreting support.
Boasting a minimal turning radius, this equipment is incredibly convenient for navigating and operating in confined spaces, ensuring unmatched accessibility and maneuverability.
Showcasing a formidable maximum shotcreting volume of 20m³/h, the UPS-20J efficiently handles high-volume shotcreting tasks while incorporating advanced pipe blockage prevention to maintain seamless operations.
Engineered with an optimized and upgraded structural design, the UPS-20J offers a notably low failure rate, high compatibility with universal accessories and consumables, and remarkably low operational costs, thus enhancing overall efficiency and reducing maintenance expenses.
Product Parameters

Max mumoveralldimension(L×W×H)	7830×2000×2520mm
Self-weight	12.5t
Operatingmode	Electric system + diesel engine emergency response system
Operatingrange(W×H)	15×8.5m
Maximumshotcretingvolume	20m³/h
Controlmode	The boom adopts wireless remote control
Chassis model	Self-made engineering vehicle chassis
Engine	Cumming
Power	110kW
Wheelbase	3540mm
Maximum travel speed	17km/h
Maximum gradeability	25°
Minimum outer turning radius	6301mm
Minimum inside turning radius	3768 mm
Minimum ground clearance	408mm
Structural form of boom	Three-section arm two-stage telescopic
Maximum spray height	8.5m
Maximum spray width	2×7.5m
Boom pitch angle	-30°~+50°
Boom slewing angle	0~270°
Axial rotation of spray nozzle seat	360°
Axial swing of spray nozzle seat	240°
Deflection angle brushing of spray nozzle	8° ×360° continuous
Total motor power	45kW
Number of cylinders	2
Cylinder (cylinder diameter X stroke)	90mm×800mm
Concrete cylinder (cylinder diameter × stroke)	160mm×800mm
Pumping line	125-80 reducer pipe
Maximum size of sprayed aggregate	25mm
Maximum pumping volume	20m³/h
Hopper capacity	0.35m³
Material receiving height	1310mm
Air compressor displacement	10.5m³/min,45kW
Working pressure of air compressor	0.7MPa
Admixture system displacement	620L/h
Admixture system pressure	1MPa
Volume of accelerator tank	400L

Detailed Photos
FAQ
1,What can you buy from us?
Our current main products include comprehensive solutions for underground engineering machinery and intelligent mining equipment. This includes tunnel boring machines, integrated arch anchoring and spraying trolleys, arch anchoring trolleys, integrated arch drilling trolleys, arch frame installation trolleys, wet spraying rigs, and rock drilling rigs. We have the capacity to provide customers with integrated total solution services.
2,What about the MOQ?
The Minimum Order Quantity (MOQ) is 1 set.
3,What payment terms do you accept?
We accept T/T with a 50% prepayment.
4,What about the order lead time?
The usual lead time is 15 days.
5,What logistics methods can you use for shipment?
Truck delivery can be arranged in Central Asia and Russia, and you can also choose rail and sea shipping.
6,How is your delivery time?
The delivery time via China-Europe trains is 15 to 20 days, while sea shipping takes approximately 2 to 3 months.
7,How about your customer service and after-sales service?
We offer 24/7 online support and provide after-sales support in Russia and Central Asia.

---
