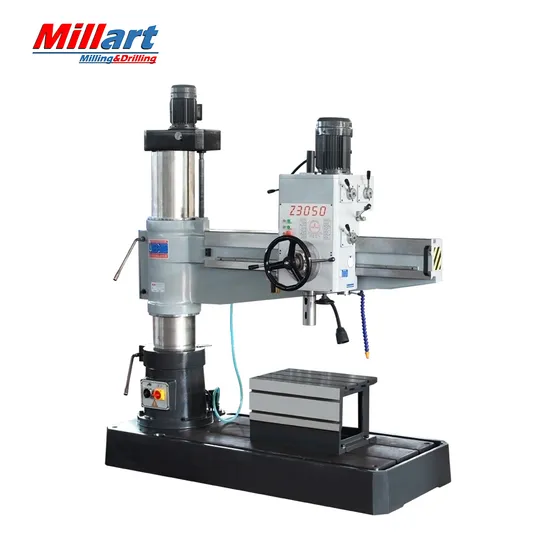

Radial Drilling Machine Z3050X16 Hydraulic Radial Drilling Machine

Product Description

Radial Drilling Machine Z3050X16 Hydraulic Radial Drilling Machine
Features:
The large weight and stiff construction of the drill ensures stability and vibration free operation
The cube table ensures easy adjustment and filling of the workpiece
Height adjustment of the arm by motor
Control panel located on the front of the drill for better performance and ergonomics
The polished surface of the column ensures easy, free and precise travel of the arm
Drill equipped with manual blocking of the head and arm of the column
The large speed range ensures precise and fast processing
Technical parameter:

Model	Z3050x16
Max. Drilling dia. (mm)	50
Distance from spindle nose to table surface (mm)	260-1050
Distance between spindle axis and column face (mm)	360-1600
Spindle travel (mm)	200-220
Spindle taper	5
Spindle speed range (rpm)	78-1100
Spindle feeding range (rpm)	0.10-0.56
Rocker rotary angle	360
Main motor power (kw)	4
Movement motor power (kw)	1.5
Net weight (kg)	2800
Overall dimension (mm)	2170*950*2450

Standard accessories:
Box type worktable
Drill chuck
Taper sleeve
Tools
Optional accessories:
Spindle guard
Machine vise

---
