S5735S-L24T4S-A 98010915 S5700 Series high performance 24 port switch

Product Description

Product Description
Basic information about the S5735S-L24T4S-A Series
Model
Software Version

S5735S-L	S5735S-L24T4S-A	V200R019C00 and later versions NOTE: V200R021C01 is not supported.

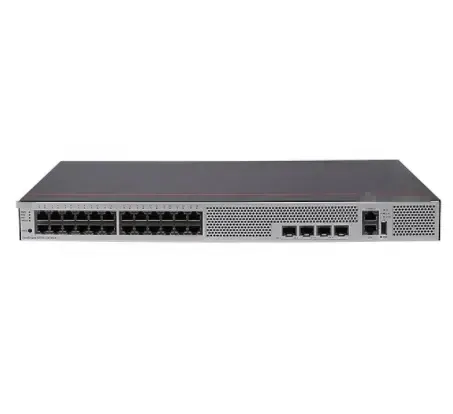

Detailed Photos

Product Parameters
Technical Specifications Item
Description

Memory (RAM)	1 GB
Flash	512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	92.82 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±7 kV
Power supply surge protection	±6 kV in differential mode, ±6 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Weight (with packaging)	4.08 kg (9 lb)
Stack ports	Any 10/100/1000BASE-T ports or 1000BASE-X ports (applicable in V200R019C10 and later versions)
RTC	Not supported
RPS	Not supported
PoE	Not supported
Rated voltage range	AC input: 100 V AC to 240 V AC, 50/60 Hz High-Voltage DC input: 240 V DC
Maximum voltage range	AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz High-Voltage DC input: 190 V DC to 290 V DC
Maximum power consumption (100% throughput)	34 W
Typical power consumption (30% of traffic load) Tested according to ATIS standard EEE enabled No PoE power consumption	28 W
Operating temperature	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). The operating temperature of the switch is -5°C to +40°C (23°F to 104°F) when it uses GE SFP optical modules with 40 km or longer transmission distance. When SFP+ copper cables or dedicated stack cables are used to set up a stack, the switch can operate in the following temperature range: -5°C to +45°C (23°F to 113°F) (installed in the ventilation cabinet, with the wind speed of at least 40 LFM) When SFP+ AOC cables or 10GE SFP+ optical modules are used to set up a stack, the switch can operate in the following temperature range: -5°C to +45°C (23°F to 113°F) (installed in the ventilation cabinet shipped with fans with a fan speed of at least 200 LFM)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	Noise-free (no fans)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification Safety certification Manufacturing certification
Part number	98010915

Company Profile
Chongqing Chimu Technology Co., Ltd. was established in 2011, we have been engaged in this industry 11 years. Relying on 11 years of deep experience in the communication field and scientific and technological innovation ability, through the integration of multi-brand, full series of communication products resources, with a one-stop service model. Let the network better connect you and me, connect the world. In order to meet the needs of customers, we have eatablished a perfect supply chain system to provide super products with reliable quality and reasonable price.
We are devoted to offering Switches, Routers, Servers, Storages, LTs, SDHs, Network Modules, Interface Cards, Security Firewalls, Wireless AP. Our long-term aim is to provide users high-quality, efficient, economic, timely services. Looking forward to establish long-term and win-win business relations with you.
Our Advantages
A)Stable and Wide Supply Chain Systemwe have established a perfect supply chain system to provide a wide range of products with reliable quality and reasonable price.B)Competitive PriceWe ensure the most competitive price. Warm reminders here, telecommunications equipment configuration is quite different, the price shown on the website is only for reference. After configuration and quantity been confirmed, we will give the final most competitive discounted price.C) Safe and Easy Payment SolutionsWe accept all major credit cards, PayPal and wire transfer.D)Fast Delivery and ShippingFast, professional and reliable delivery.E)11 Years Experiencewe have been engaged in this industry more than 11 years, we have rich industry experience.
Packaging & Shipping
FAQ
Q: How about your main products?
A: Our product lines include Switches, Routers, SFP Modules, OLTs, SDHs, Network Modules, Interface Cards, Security Firewalls, Wireless AP etc.
Q: What brand of products do you offer?
A: We can supply all the brands you need.
Q: what services can we provide?A:Accepted Delivery Terms: FOB,CFR,EXW,FCA; Accepted Payment Currency:USD,EUR,CAD,HKD,GBP,CNY; Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union,Cash etc...
Q: Can we get free samples?
A: Sorry, it is not available, but you can pay for one.
Q. How can we guarantee quality?A:Always a pre-production sample before mass production; Always final Inspection before shipment;
Q: How about your delivery time?
A: Generally, it will take 1 to 10 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q: Do you test all your goods?
A: Yes, We have professional engineer to test all devices before shipping.
Q:How about the MOQ?
A:1 piece

---
