Product Description
Product Description

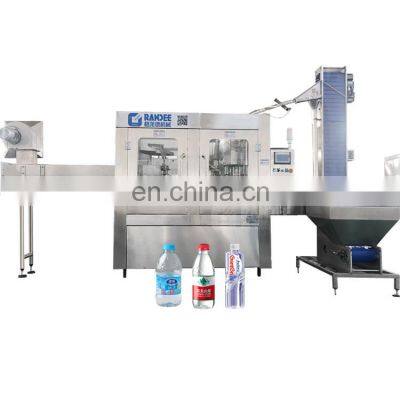

Automatic pure water purification bottling filling machine and lineProduct DescriptionMachine description:1.The mineral water filling machine adopts advanced technology from abroad, and combined with the characteristics of our country, self- developed. 2.It adopts a large number of new technology, new process and new structure. It has top quality. 3.The feature: the neck of the bottle was stuck between the bottle clipping board and upper formed plate, then the star wheel transmission let the … run, and bottles were transported. So that to achieve the three process(washing, filling, sealing).The advantages: low wear rate of bottle, easy changing of bottle model, precise and smooth driving, scientific process flow, etc. 4.Besides, all the parts of the equipment that contact with liquid are made of imported stainless steel or food engineering plastic with wear resistance and ozone proof. Its electric system mostly adopts imported part. With standards food sanitation, stable and reliable property, low failure rate, full automatic control and perfect after-sales service, this kind of machine is popular among the foreign and domestic customers. And it is an ideal equipment for different kinds of beverage manufacturing enterprise. Machine show:DetailsWashing Part:The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip. After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position againFilling part:Long tube filling type with 2 times filling process to make sure perfect filling level Liquid tank, filling valves, controlling rings, upgrading cylinder.High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic. Capping Part: Rotative capping turret, suitable to the application of screw plastic caps on PET bottles The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads. The heads are raised and lowered by the action of a follower that is riding on a shaped cam.Air conveyor Air Conveyor is mainly used in the automatic filling production line of PET bottle beverage or water. It is the intermediate transportation of connecting blowing machine, unstacking machine, bottle storage conveying table and filling machine.Conveyor system Conveying path support on the ground by tripod, driving motor adopt frequency control, it connects with washing filling and capping 3 in 1 machine and keeps pace with it. The filled bottles are conveyed by the conveyor system. Driving system is running by a main motor that adopts gear drive mode. Main technical parameter:ModelCGF8-8-3CGF14-12-5CGF16-16-6CGF18-18-6CGF24-24-8CGF32-32-10CGF40-40-12Capacity(500ml/BPH)200030004000600080001200016000Suitable bottle shape and sizeBoth round of square bottle, 220ml-2000ml, Dia: 50-108mm, Height: 150-340mmCompressed air pressure0.3-0.7MPaBottle washing mediumSterile waterWashing pressure0.25MPaMain motor1.52.22.22.235.57.5Dimension(mm)2000*1600*23002200*1800*23002400*1900*23002500*2000*23002700*2100*23002970*2260*27003780*2800*2700Weight(KG)2000250030003500450065008500Related productRO System This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr.This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank.This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised. Blowing Machine with different options 1. Semiautomatic Blowing Machine for 800BPH-2000bph from 0.2-2.5L bottle with 2 or 4 cavities.2.Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 500ml bottle. Automatic PVC sleeve labeling machine Capacity: 100-350bottles/min can be chosenLabel material: PVC PET OPS, etcBottle material: PET PE PP GlassBottle Diameter: 28 ~ 120mmBottle Height: 15~320mmBottle shape: round, square, ellipse, rectangularLabel length: 30~250mm(max) Automatic pet film shrink packing machine Flow: Feeding→ pushing bottles→ film covering and sealing→ shrinking→ coolingSpeed: 8-12packages/minPower (rated/real): 26kw / 16kwMax. packing size: 420*300*350mm(LxWxH)Max. sealing size: 650mm Company InformationOur ServicesFAQQ1: How to find suitable machine or complete beverage production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn •Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements • Discussion: Specify the items and what are you exactly looking for. Q2: Are you a trading company or a manufactory?A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms . Q3: Do you have technical support after we purchased your machines?A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q4: If you buy our machines, can you offer us wear-out spare pats?A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
>>
