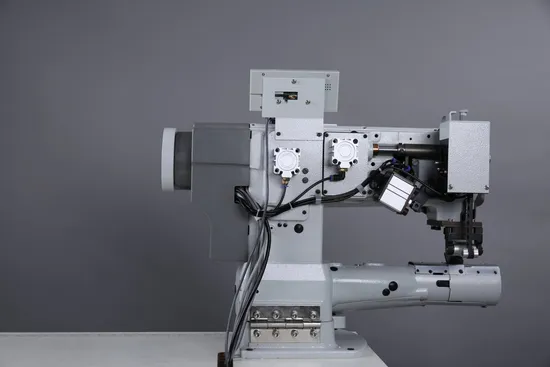

HY-1341BVF Direct Drive Cylinder Bed with Cutter Compound Feed Sewing Machine

Product Description

Walking foot leather industrial sewing machine, post bed sewing machine
HY-1341BVF Direct drive cylinder bed type on-off right cutting compound feed sewing machine

Model No.	HY-1341BVF
Feeding system	Alternating presser foot, feed dog and needle feeding
Max sewing speed	2500 s.p.m
Shuttle diameter	Ф26mm
Diameter of cylinder	80mm
Applied needle	DP×17 #18-#23
Thread size	Maximum thread 9 strands nylon
Max stitch length	6mm
Max alternating presser foot	6.5mm (Manually adjusted by knob)
Max presser foot lifting height	16mm
Edge trimmer	√
Auto back tacking	√
Auto oil system	√
Presser foot lifting height by air	√
Operation space	255×103mm

Product Description:
1. Optimized design of left hook and right cutter on the basic of cylinder compound feeding, it realize the edge trimming when sewing material.
2. It can adjust the alternating amount of presser foot by manual through the knob.
3. The knife can be switched on or off in product process by shortcut button.
4. With the practical functions of auto back tacking, pneumatic presser foot lifting, auto oil supply.
5. For standard needle gauge set cutting width 5mm.
Typical Field of Application:
Application: sewing of car mats, cylindrical or small materials requiring edge trimming.
