Universal Tool Grinding Machine 2M9120A 2M9125A MA6025

Product Description

Product Description
Detailed Photos

Product Parameters

Performence Features:

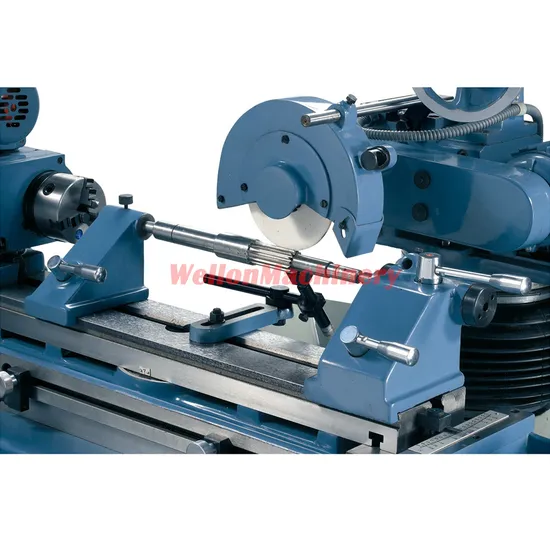

The multi-grinder ranges from external and internal cylindrical grinding to taper grinding.
It also allows tool grinding, (sharpening of cutters reamers, and turning tools) and is suitable for light surface grinding jobs.
1.The machine combines the functions of universal external grinder and universal cutter grinder.
It performs with super quality such as grinding internal cylindrical and taper workpiece, flat, vertical and inclined surfaces
and slots.It can also readily undertake sharpening cutters such as various milling cutters, reamers, pinion cutters and lathe
and supplied upon ordering.It can also be used for sharpening straight fluted hobs drill,etc.
2.The wheelhead spindle of the machine runs perfectly well, its adjustment are easy.The worktable drive many be either
hydraulic or manual controlled hydraulic serve.
3.You would find it an indispensable equipment for your tool shop, repair shop, research units and small and medium scale
machinery plants.
Technical parameter:

Model	2M9120A	2M9125A	MA6025
Max. swing diameter over table	Φ200mm	Φ250mm	Φ250mm
Max. work piece length	500mm	500mm	650mm
Size for surface Grinding	300×125mm	200×50mm	350×100mm
Size for cutter grinding	Φ200×500mm	Φ250×500mm	Φ270×545mm
External grinding	5-50mm	5-50mm(MT2) 5-100(MT4)	/
Internal grinding	10-50mm	10-50mm	/
Max. weight of work piece	10kg	10kg	12kg
Work head spindle taper	MT2	MT2/MT4	ISO .NO.50/M.T.NO.2-5
Work head spindle speeds	110,200,300rpm	110,200,300rpm(MT2) 60,,9,120,175,235,345rpm(MT4)	280rpm
Work head swivel	±90º	±90º	±360º/±15º(Tilt)
Max. traverse of the wheel head
Slide Vertical/Cross	200/200mm	250/200mm	250/230mm
Wheel head spindle speeds	2500rpm	2500rpm	2700,4000,5500 rpm
Speed of wheel head up-down travel
Internal grinding spindle speed	13500rpm	13500rpm	/
Longitudinal table travel, hand control	480mm	480mm	400mm
Table travelse speed	0.1-6m/min(hydraulic) ≤7m/min(Servo drive)	0.1-6m/min(hydraulic) ≤7m/min(Servo drive)	Manual
Max. swivel of table	±45º_-30º	±45º_-30º	±45º
Tailstock taper/Sleeve travel	MT2/14mm	MT2/14mm	MT2
Total power	2.905kw	2.995kw	3.15kw
Overall dimensions	1520×1133×1173mm	1520×1220×1360mm	1340×1320×1320mm
Size of case	1900×1400×1630mm	1860×1360×1590mm	1820×1550×1640mm
Gross Weight/Net weight	1700/1285kg	1700/1385kg	1300/1100kg

Standard accessorise
Coolant equipment	1Set-Left tailstock
6Piece-Grinding wheel	5Set-Driving dogs
1Set-Internal grinding wheel head	1Set-Wheel dresser
1Piece-Extended grinding wheel spindle	without diamond
1Set-Cutter head	3Piece-Wheel pullers
1Set-Ttree-jaw chuck	2 Piece-Vee-belt
1Set-Plane grinding	1Set-Wheel balancing stand
1 Piece-Centre	1Piece-Flat belts
1Set-Tooth rest	3Sets-Flanges for grinding wheel
1 Piece-Centre	2Piece-Centering technical sleeves
	2Sets-Wheel guards

Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center,
Double Column,Machining Center,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper
machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
