Product Details
Product Description
Product Description
Product Overview:

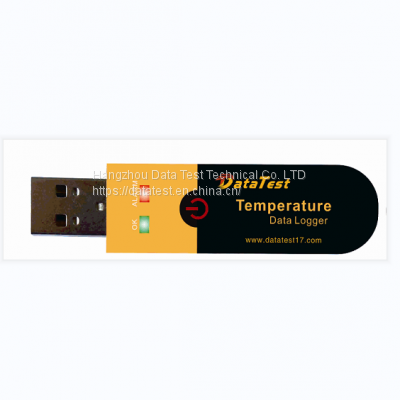

PDF single-use temperature recorder is a recorder specially developed by Hangzhou Data Test Technical Co., LTD for the cold chain industry, especially suitable for food, medicine, chemical and other temperature-sensitive products transportation and storage links.
When the recorder is inserted into the computer to read the temperature report, it will generate a drive named DataTest, which contains an encrypted PDF format and CSV format report. Double-click to open it, which is convenient for your use, and the data can not be tampered with.
Technical Parameters:
◆Temperature Measurement Range：-25℃ ~ +70℃
◆Accuracy：±0.3℃/0.54℉
◆Resolution：0.1℃/℉
◆Record Points：14000
◆Record Cycle：90 days /10 minutes (optional for other days)
◆Temperature Type：℃/℉
◆Delay Record：30 minutes（optional for other days）
◆Alarm Functions ：set upper and lower temperature values
◆Shelf Life：18months
◆Button Function：start/stop/special event maker/running status
◆Special Sign：the largest 10 times
◆Report Type：encryption PDF&CSV formatted file
◆Connector：USB 2.0
◆Power：3.0V CR2032Lithium battery
◆Compatible System：WINXP/7/8/10
◆Protection Level：IP68
◆Size：97mm L x 45mm S x 8mm H
◆Height：about10.6g
◆Package：food grade plastic bag
Operating Guide：
1、Start: press the button for 3s, and the OK indicator blinks 5 times, indicating that the recorder is started successfully.
2、Rip the barcode off for use (the barcode on the outside of the recorder is the same as the barcode in the PDF report).
3、Mark: Double-click the key, and the OK indicator blinks three times continuously, indicating that the mark is successful. The maximum number of marks is 10. The mark information will be reflected in the PDF report.
4、Stop recording: press the button for 3s, and the ALARM indicator blinks 5 times, indicating that the recorder has stopped successfully (or directly insert the recorder into the USB connection of the computer.The device will stop automatically.)
5、Get the report: Inserting the recorder into your computer generates a drive called DataTest, which contains an encrypted PDF format Report and CSV format, double-click to open, data can not be tampered with.
Announcement：
Do not tear the protective bag! Do not tear the protective bag until the recording is complete and the computer is connected to view the data report.
1. When placing the recorder into the test environment, ensure that the recorder is already in the startup or startup delay state.
2. When inserting the recorder into the computer, if the indicator light does not blink, try to insert the recorder into the computer in reverse.
>>
