Auto Waste Plastic Pet Recycling Machine /Pet Recycling Plastic Bottle Production Line

Product Description

Product Description

Raw material
The raw material for our PET recycling machine is PET bottles, also called them cold water bottles.
Function
The main function of the PET recycling machine is to crush and clean PET bottles.
In the process of crushing and cleaning, the raw materials of the bottle cap and the bottle body are different, so the caps will be separated in the process, leaving only the bottle body.
And the final product obtained is clean PET flakes.

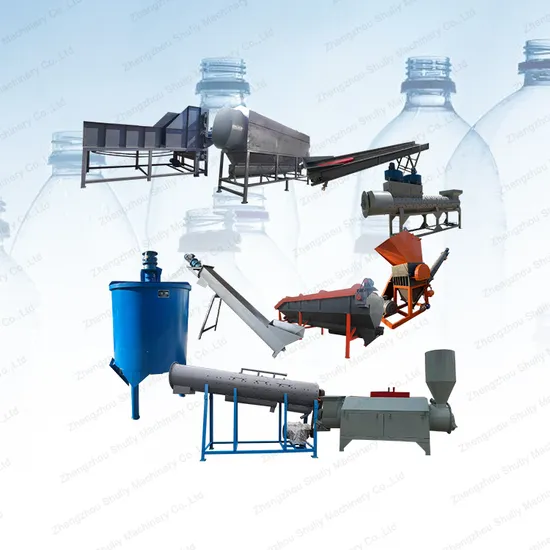

Production
1. Climbing Conveyor: Convey the bottle to the label-removing machine.
2. Label Removing Machine: Remove the label from the bottle.
3. Sorting Conveyor: Transfer the no-label bottle to another climbing conveyor, At the same time, select again not fully
removing label bottles and different colors bottles.
4. Climbing Conveyor: Convey the bottle to the bottles crushing machine.
5. PET Bottle Crusher Machine: Crush the bottles into small chips.
6. Screw Conveyor: Convey the plastic chips into PET, PP washing, and separating machines.
7. PET, PP, PE washing and separating machine: washing and Separate PET chips and PE bottle cap.
8. Screw Conveyor: Convey washed PET chips into a high-temperature washing barrel.
9. High-Temperature Washing Barrel: Wash PET chips with hot water and cleaning agent.
10. Screw Conveyor: Convey washed PET chips into the rubbing washing machine.
11. Rubbing Washing Machine: With water recycling, clean the PET bottle enough, and remove cleaning agents
and other impurities.
12. PET, PP, PP washing and separating machine: Separate PET chips and PE, PP bottle cap completely.
13. PET Chips Dewatering Machine: Dewatering for PET chips
Capacity
PET recycling machine's smallest capacity is 500kg/hour.
We also have 1000kg/hour,1500kg/hour,2000kg/hour, and so on.
We can customize it according to your demands.
Application
1. PET flakes can make packing belts.
2. PET flakes can add some other material to do something, such as adding some lime to make tiles.
3. PET flakes can make new plastic products, and these products can be used for industry.

---
