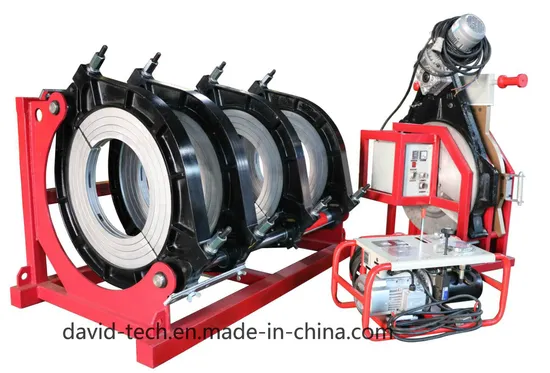

HDPE PE PVC Pipe Hydraulic Butt Fusion Welding Machine

Product Description

HDPE PE PVC Pipe Hydraulic Butt Fusion Welding Machine
1: Feature: The raw material of the machine frame is aluminum ZL104, it is light but strong, is one of the best material for machine. The main electrical apparatus elements are best of china, many are imported from abroad. Removable PTFE coated heater with separate temperature control system, the temperature can be controlled to a minimum range. The electric facer adopts reversible double cutting edge blades, which can make the cutting effect more perfect. 2:Specification:

Model	DT200
Welding range(mm)	63mm-75mm-90mm-110mm-125mm-140mm-160mm-180mm-200mm
Heating plate temperature	270°C
Heating plate surface temperature(170-250°C)	<±5°C
Pressure adjustment range	0-6.3MPa
Working Voltage	220V,50Hz
Heating plate power	1.5KW
Cutter power	0.85KW
Hydraulic station power	0.75KW
Total Power	3.1KW

Model	DT250
Welding range(mm)	110mm-125mm-140mm-160mm-180mm-200mm-225mm-250mm
Heating plate temperature	270°C
Heating plate surface temperature(170-250°C)	<±5°C
Pressure adjustment range	0-6.3MPa
Working Voltage	220V,50Hz
Heating plate power	2.1KW
Cutter power	1.36KW
Hydraulic station power	0.75KW
Total Power	4.21KW

Model	DT315
Welding range(mm)	160mm-180mm-200mm-225mm-250mm-280mm-315mm
Heating plate temperature	270°C
Heating plate surface temperature(170-250°C)	<±5°C
Pressure adjustment range	0-6.3MPa
Working Voltage	220V,50Hz
Heating plate power	3.1KW
Cutter power	1.36KW
Hydraulic station power	0.75KW
Total Power	5.21KW

Model	DT450
Welding range(mm)	280mm-315mm-355mm-400mm-450mm
Heating plate temperature	270°C
Heating plate surface temperature(170-250°C)	<±7°C
Pressure adjustment range	0-6.3MPa
Working Voltage	380V,50Hz
Heating plate power	5.2KW
Cutter power	1.5KW
Hydraulic station power	1.5KW
Total Power	8.2KW

Model	DT630
Welding range(mm)	400mm-450mm-500mm-560mm-630mm
Heating plate temperature	270°C
Heating plate surface temperature(170-250°C)	<±7°C
Pressure adjustment range	0-6.3MPa
Working Voltage	380V,50Hz
Heating plate power	9.2KW
Cutter power	1.5KW
Hydraulic station power	1.5KW
Total Power	12.2KW

Model	DT800
Welding range(mm)	630mm-710mm-800mm
Heating plate temperature	270°C
Heating plate surface temperature(170-250°C)	<±7°C
Pressure adjustment range	0-16MPa
Working Voltage	380V,50Hz
Heating plate power	12.5KW
Cutter power	1.5KW
Hydraulic station power	1.5KW
Total Power	17KW

Model	DT1000
Welding range(mm)	710mm--800mm--900mm--1000mm-
Heating plate temperature	270°C
Heating plate surface temperature(170-250°C)	<±10°C
Pressure adjustment range	0-16MPa
Working Voltage	380V,50Hz
Heating plate power	21.7KW
Cutter power	3.0KW
Hydraulic station power	3.0KW
Lifting power	1.1KW
Total Power	28.8KW

Model	DT1200
Welding range(mm)	800mm-900mm-1000mm-1200mm
Heating plate temperature	270°C
Heating plate surface temperature(170-250°C)	<±10°C
Pressure adjustment range	0-18MPa
Working Voltage	380V,50Hz
Heating plate power	30KW
Cutter power	3.0KW
Hydraulic station power	3.0KW
Lifting power	1.5KW
Total Power	37.5KW

3: Easy to use.
1. Lower start-up pressure make the small diameter pipe weld more reliable.
2. Welding position can transform that it is convenient for welding all kinds of pipe fittings.
3. Standalone dual channel timer can record both of heat and cooling hours, when timing is over, the timer will give an alarm.
4. High-precision shockproof pressure gauge with large dial is easy to read.
4:Service.
1. One year warranty, life-long maintenance.
2. In warranty time, if non-artificial reason damaged can take old change new for free. Out of warranty time, we can offer maintenance service (charge for material cost).
FAQ
Q: What is the Raw material ?
A: 100% virgin raw material.
Q: What is your MOQ?
A: As customers' requests.
Q: why choose us?
A: We are a professional manufacturer with competitive price, good quality and fast delivery time.
Q: How to buy the product?
A: Send email to me, we will reply to you within one day.
Q: Can you make special Design and logo on product?
A: Yes, very easy.
Please contact me for more info today!
Qingdao David Technology Co., Ltd.
Sales Manager : Mr. Dave Liu

---
