US$22,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Automatic Grade
Automatic
Certification
CE, ISO 9001
Machine Type
CNC Milling Machine
X,Y,Z Motor Type
Servo Motor
Power Supply
Three Phase 380V/50Hz
Transport Package
Wooden Case
Production Capacity
25 Sets/Month
Product Description

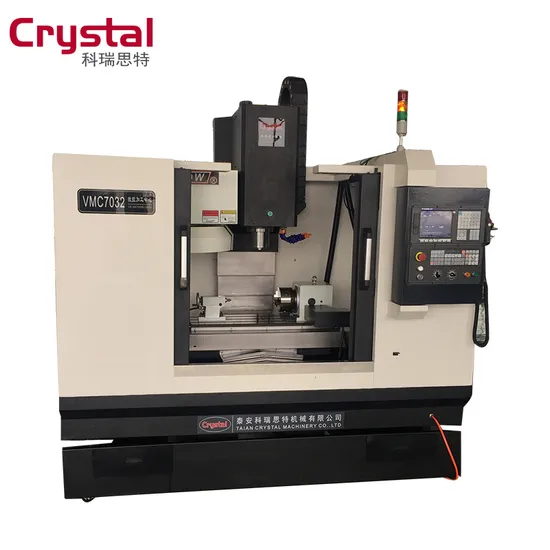

VMC7032 CNC Vertical Milling Machine
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping and boring etc.
Features:
1.Taiwan BT40 Spindle
2.Taiwan ball screw and locking nut
3.Umbrella type tool Magazine, 12 tools
4.Fully-guarded type machine
5.KND system ( Siemens and FANUC control are optional)
6.self-lubrication, coolant system, lighting system
Specifications:
Specifications
| Unit
| VMC7032
|
Table Size (L*W)
| mm
| 800×320
|
Travel of x,y,z axis
| mm
| 610/320/400
|
Max, table load
| kg
| 400
|
T-slot Size
| mm
| 3-14-100
|
Center distance
| mm
| 100
|
Spindle taper
| --
| BT40
|
Spindle center to Column guide distance
| mm
| 376
|
Spindle end face to table distance
| mm
| 130-530
|
Max speed
| rpm
| 8000
|
Spindle motor power
| KW
| 3.7/5.5
|
Spindle drive
| --
| Belt transmission
|
Positioning accuracy
| mm
| 0.015
|
Repeat Positioning accuracy
| mm
| 0.0075
|
Rapid feed of X/Y/Z
| mm/min
| 1000
|
Cutting feed of X/Y/Z
| mm/min
| 6000
|
Tool Magazine Capacity
| tools
| 12
|
Max. Tool size
| mm
| 100
|
Max. Tool weight
| kg
| 8
|
Machine Weight
| Kg
| 3000
|
Dimension
| mm
| 2280*1760*2200
|
Power
| --
| 3 phase 380V,
|
VMC7032 Optional Configurations:
1. System: KND2000M, FANUC, Siemens etc.
2. Spindle speed: 10000rpm
3. Fourth axis with 125°dividing head
4. Fifth axis
5. 16 pieces arm type ATC
>>
