Small New Design Long Life Oil Press Machine for Commercial

Product Description

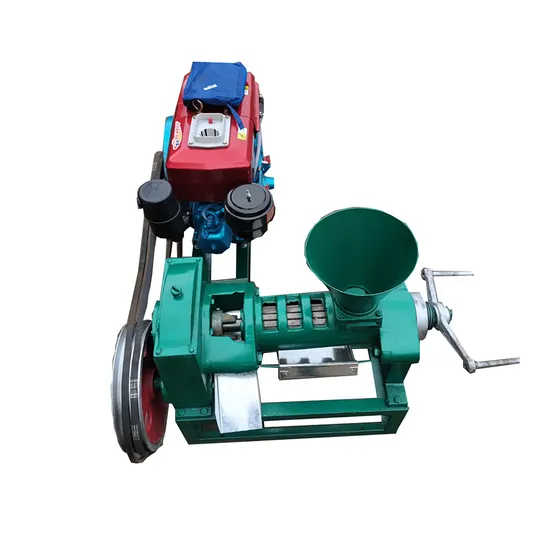

Small new design Long life oil press machine for commercial
Product Description
The oil press machine is more advanced machinery in oil process up to now, with simple structure, easy operate, low consumption, low noise, high output rate, high adaptability, continuous work and other characteristics.
For most kinds of oil materials can be pressed, such as peanut, soybean, rapeseed, cottonseed, sesame, sunflower seed, almond, etc.
Suitable for medium-small scale oil factory and private user, as well as for the pre-pressing of extraction oil factory.
It is once screw presser, with the higher capacity and lower consumption, the higher rate of output oil and lower resided oil in the cake.

Model	ZY-68
Helical diameter	φ 68.5mm
Main engine power	5.5KW
Rotating speed	1440 rpm
Handling capacity	40-60 kg/h
Weight	140KG
Size	920*480*760mm

Working Principle of the oil press machine:
When oil press is operating, prepared material enters the chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed.
Under the high-pressure condition in the chamber, friction between material and screw, between material and chamber will be created, which also creates friction and relative movement among material particles.
On the other hand, root diameter of the pressing screw varies larger from one end to the other. Hence, when rotating, it not only pushes particles moving forwards but turns them outwards as well. Meanwhile, particles adjacent the screw will rotate along with screw's rotating, causing every particle inside the chamber to posses different speed.
Therefore, relative movement among particles creates heat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity, decrease oil's elasticity, resulting in high oil productivity.

Product Advantage
The screw oil press machine is a type of small cold press oil expeller machine that fully makes use of screw-driving force to extract oil from oil seeds for higher oil output. Besides, cold press oil expeller machine features simple structure and user-friendly function. It's also worthy mentioning that it is suitable for cold and hot pressing. In conclusion, screw oil press is the best choice for both small and medium oil pressing mill or mobile oil making.
Advantages and benefits of our palm oil press machine
1. Healthy
Physical squeezing craft maximally keeps the nutrients such as the protein, fatty acids and minerals, etc.
2. High working efficiency
The spiral squeezing structure can achieve high oil output, thus the oil content of the residue cake is low.
3. Long durability
All the parts are made of the most suitable material and treated with refined crafts to ensure the long term runing, such as cemented quenching and tempering to increase the hardness, consequently the durability.
4. Cost-effective
The wearing parts on the machine such as the squeeze loop, squeeze spiral and squeeze bar are designed to be dismountable. When they are out of service period, users only need to replace them and no need to displace the whole machine.
Applications:
It can be used for various materials such as Peanuts, Rapeseeds, Sesame seeds, Soybeans, Cottonseeds, Tea seeds, Sunflower seeds, Palm kernel, Corn germ etc. Related Products

Company Profile
Henan Yunshan Machinery Equipment CO.,Ltd
is a specialized enterprise focusing on research,design manufacture, installation and sales of grain and oil sto-rage silo and project, grain drying equipment and project, edible oil processing equipment, extraction equipment, refining equipment, separation equipment and project, environmental protection equipment and project. "With high quality and first-class service, every customer can enjoy the fruits of modern agricultural science and technology" is our company's vision...
Our team
Packaging and transportation
FAQ
Q1: What's your advantage?
A: Honest business with competitive price and professional service on export process.
Q2:Is that factory price?
A: We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from ******, your order and money will be well guaranteed. Sure,welcome to you visit our factory at any time.
03:How is the quality of your products?
A: Our products are manufactured strictly according to national and international standard,and we take a test on every equipment before delivery.
Q4:How long is your guarantee?
A:One Year guarantee.We shall supply free exchange for spare parts.After this period,we shall charge at low cost to keep after service.You will be welcome to contact us with any problem might occurred.
Q5: Can you install the machine in local place?
A:We will send our engineers to local place to help installing the machine and technical guidance.
Q6:what kind of payment does your company support?
A: TT,Trade Assurance, L/C, Cash,Western Union are all accepted, if you have other payment,please contact me.

---
