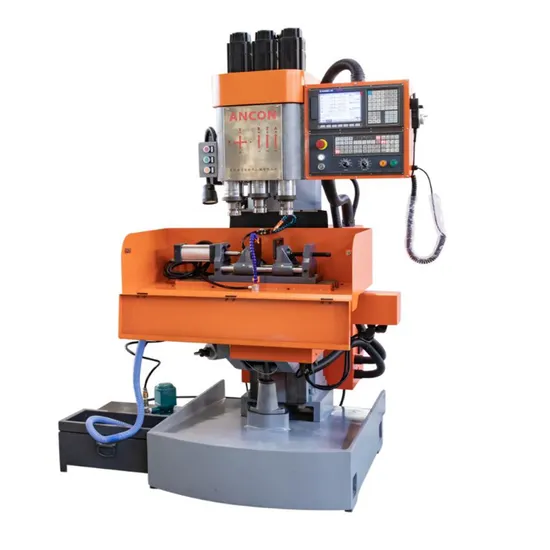

Vertical Three-Spindle Machine for Faucet/Water Meter Processing

Product Description

Product Description
1.Application
It is widely used in bathroom hardware and other spare parts.
2.Output product analysis
It is suitable for processing meticulous and complex internal milling parts processing, drilling and tapping mechanical parts at one time.
3.Process composition
Input program-place material workpiece-pneumatic clamping-automatic drilling-sliding table movement-automatic tapping-pneumatic mold opening-take out product.
4.Material selection
1)The main shaft is made of high-quality alloy steel, which has been hardened and heat treated, precisely ground, and has high wear resistance.
2)The whole machine adopts HT-250 castings to ensure the stability of the machine.

3)It adopts CNC programmable controller, which has fast efficiency and high precision.
4)Pneumatic components are used to realize automatic control, with good reliability, and to ensure high processing efficiency and high precision.

5.Machine parameters

	Parameter Items	Unit	Parameter
Number of spindles	Spindles number	Unit	3
	Spindle working mode/(X,Y,Z)	/	Servo/(X,Y,Z)power1.5KW
Workbench	Workbench movement	/	Servo/
	working size	mm	800*240
	Workbench stroke	mm	Xaxis300/Yaxis160/Zaxis120
Spindle	Spindle wheelbase	mm	120
	Spindle forms	/	ER40
	Rotating rotating speed	r/min	0-2000
	Spindle diameter	mm	Φ90
	Spindle motor	KW	5.5
Machine specifications	Machine weight	kg	1300
	Machine dimensions	mm	1500*1300*2000
Control System	Di En Si CNC

Detailed Photos
Company Profile
Delin Intelligent Technology Co., Ltd
1.We are one manufacturer of metal foundry machinery and CNC machining machinery in China.
2.We are production automatic molding machine, gravity pressure casting machine, compound CNC polishing machine , SPM machine(compound CNC drilling machine,CNC machining center etc.), furnace, core shooting machine, mixing sand machine and so on.
3.Our machines are extensively used in producing and machining foundry parts,metal castings,
plumbing fittings, sanitary ware,car spare parts,valve for brass, aluminium, zinc, iron cast production line and others please
contact us!
4.We have professional technical support and after sale service. With a whole line foundry machines,good quality, reasonable prices and stylish designs.
Reputation value
1.Domestic independent technical property rights, product use is stable and guaranteed;
2.Global service network, fast and convenient customer service;
3.Support personalized customization to enhance customer experience;
4.Expert technicians provide full service, and the product design is reasonable and effective;
FAQ
Q1. Where is your factory located ? How can I visit it ?A : Our factory is located in Quanzhou city,Fujian province,China. You can fly to Jinjiang or Xiamen air port, we will pick you up.Q2. Are you produce machine's specific parameters according to the samples?A: Yes, we produce the machine you want by your samples or technical drawings. Usually one machine have different molds and fixtures like metal polishing machine,die casting machine.Q3. What is your sample service?A: We can supply the sample testing which client want to produce if we have ready machine in stock, but the customers have to pay the sample shipping cost.Q4. What is your MOQ of your machine?A: Normally our MOQ is 1 set.Q5. Do you test all your machine before delivery?A: Yes, we have 100% test before delivery.Q6: How do you make our business long-term and good relationship?A:1. We keep good quality and competitive price to ensure our customers benefit ;2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.

---
