Laser Welding Spare Parts M16 H35 M18h35 M16 H40 with Guide Wire 0.8/1.0/1.2/1.6 Handheld Welding Nozzle

Product Description

Product Description
What is Handheld Welding Machine Nozzle?
The Handheld Laser Welding Machine Nozzle is a critical component used in handheld laser welding machines.
It serves the purpose of directing and shaping the laser beam during welding operations, ensuring precise and focused energy delivery.
The laser welder nozzle tips are widely used in various industries, including automotive manufacturing, aerospace engineering, jewelry production, and general metal fabrication.
The fiber laser nozzles we provide are suitable for welding heads of brands such as Suplasercut, Relfar and more.

Product Parameters

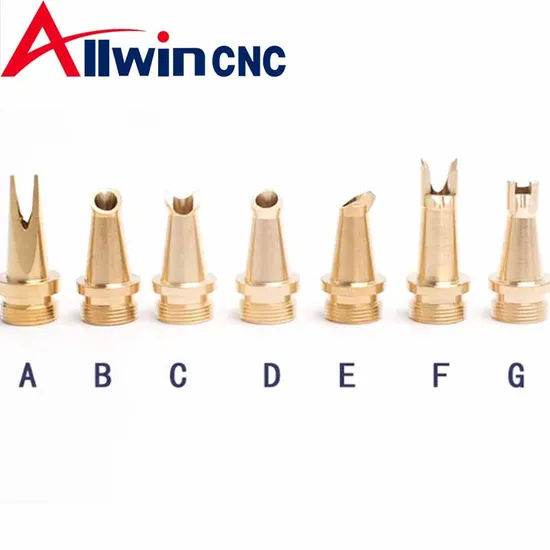

Model	Specification	Use function
AS	0.8mm/1.0mm/1.2mm	For flat angle, inner angle, outer angle welding, wire feeding 0.8mm/1.0mm/1.2mm
BS	1.6mm	For flat angle, inner angle, outer angle welding, wire feeding 0.8mm/1.0mm/1.2mm/1.6mm
CS	0.8mm/1.0mm/1.2mm	For outer angle welding, wire feeding 0.8mm/1.0mm/1.2mm
DS	0.8mm/1.0mm/1.2mm	For flat angle, inner angle, outer angle welding, wire feeding 0.8mm/1.0mm/1.2mm/1.6mm
ES	0.8mm/1.0mm/1.2mm	For outer angle welding, wire feeding 0.8mm/1.0mm/1.2mm
FS	1.6mm	For outer angle welding, wire feeding 0.8mm/1.0mm/1.2mm/1.6mm
C		For Outside corner welding, no wire feed
CT		cutting

We can also produce some other types of nozzles,including cutting nozzle,interior angle nozzle,exterior angle nozzle,flat angle nozzle and feeding nozzle.
Application
Application Materials: Stainless steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys, it can also be used for a variety of welding between different materials.
Application Industries: Machine shell sheet metal welding, Kitchen cabinets, staircase elevator, Food Machinery,shelf, oven,stainless steel door,window guardrail,distribution box,medical equipment,communications equipment,craft gifts,household and other industries.
Advantage
Advantage

1. Material: T2 grade red copper material, high temperature resistance, excellent electrical conductivity

2. Precise welding, fast welding speed, high machining accuracy, smooth welding and high finish

3. Good heat dissipation, strong thermal conductivity

4. High-quality material, durable, high-quality metal, long service life (high hardness, corrosion resistance, high temperature resistance, strong slag resistance)

5. The hand-held welding head is light and flexible, which can realize welding on any part of the work for a long time without fatigue.

Produce process
Detailed Photos
FAQ
Question : How about your after service?
Answer : Technical support by phone, e-mail or MSN around the clock.
Question : How can we install the consumables?
Answer : Friendly English version manual and operation video CD disk.
Question : How do I choose the right consumables for my machine?
Answer : According to your needs and budget, we will provide the best answer for your efficient production.
Question : How about the payment terms?
Answer : 30% T/T for deposit, 70%T/T paid before shipping.
Question : When can I get the price?
Answer : We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
Question : Can I get a lower price if I order large quantities?
Answer : Yes, once the order is confirmed, you will enjoy our factory price.
Question: Which port is the nearest from your company?
Answer : The Qingdao port is the nearest
Question: Can I have a visit to your factory before the order?
Answer : Yes, look forward to communicating and cooperating with you.

---
