Steel Profile Trapezoidal Sheet Roll Forming Machine/Ibr Roof Sheets 686 Profiles Roll Form Machine

Product Description

Steel profile trapezoidal sheet roll forming machine/IBR Roof sheets 686 profiles roll form machine
IBR is a square fluted profile with an effective covering width of 686 mm, designed for use as side cladding or roofing material in commercial, industrial and residential buildings. The name IBR is abbreviated from "Inverted Box Rib" and has become a household name in the South African building industry. The deep, broad flute design offers excellent drainage characteristics combined with optimum weight versus load/span capabilities. IBR can be factory cranked, curved and bullnosed to various radii depending on customer's requirements. 2.Equipment detailed parameters:

1.Processing material	aluzinc/galvanized steel/colored steel coil
2.Material thickness	0.3-0.8mm
3.Feeding width:	925mm
4.Effective width	686mm
5.Main motor power	5.5kw
6.pump power	4kw
7. Shaft diameter	75mm
8.Forming steps	16steps
9.Main frame	350H Steel frame
10. Side plate thickness	16mm
11.Roller material	45# forged steel, with hard chrome plating
12.Control systerm	PLC control system with touch screen
13.Cutting blade material	Cr12.
14.Working speed	About 10-15m/min
15. Transmission way	1 inch chain drive
16. Machine size (mm)	About 7800*1500*1400mm
17. Machine weight	About 2.5ton
18.Power supply	380v,3phase,50hz or accodring to customer request

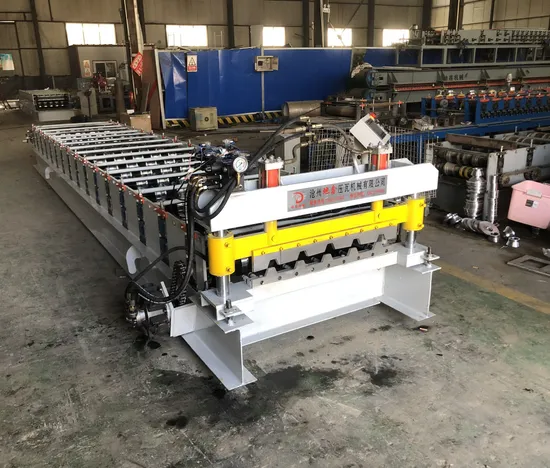

2.Some machine photos for your reference
3.Packing and shipping details 1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
About Company shows Our factory Established in 2001, our factory gets specialized in producing all kinds of roll forming machines such as Corrugated Sheet Roll Forming Machine, IBR Sheets Roll Forming Machine, Glazed Tile Roll Forming Machine, Double Layer Roll Forming Machine, Three Layer Roll Forming Machine, Sandwich Panel Roll Forming Machine, C/Z/U Purline Roll Forming Machine, etc. There are professional engineers and workers to design and produce according to your need.
The machines produced by our factory have been sold worldwide such as Russia , Kazakhstan, England, America, Italy, Australia, Philippines, India, Thailand, Nigeria and Syria, etc. So we are fimiliar with the different needs for different markets.
WHY CHOOSE US ?

1.We are the most professional in China,we do our best to benefit for you,our machines are best-quality;
2.From the photo seeing :All kinds of tile type machine we did for customers ;
3.We lengthen the plate beside the machine to make the machine strong during working;
4.When you visit and come to China ,we can teacher you how to use it ;
5.Appear any questions ,we will try our best help you deal with ;Meanwhile ,if any parts go broken and not artificial damage ,we will send you new onew with free .

Our company insists on the service aim:quality first,credit first.we believe that quality is the lifeblood for enterprise.we will supply satisfied products and after-sale service for every client.
we can produce according to customers design and request. welcome send to your inquiry!

---
