Product Details
Product Description
Product Description
EMAIL:sales@wallystech.com
Wallys Communications (Suzhou) Co LTD (web:wallystech com)
With over 15 years of experience in wireless industry and penetrating market olfaction, Wallys has designed and manufactured many high quality and cost-effective routerboards and wireless network cards
products:
wifi6 router
WiFi 6 (802.11ax)
802.11ac wireless

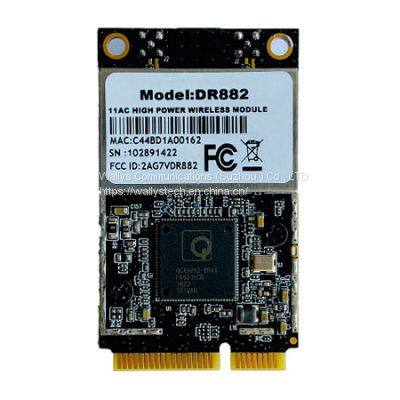

DR882
Radio card Support 11AC/AN wifi
2x 2 5G High power QCA9882
Featuring with industrial-grade Atheros’s QCA9882 chipset
Integrated with 2x 2 5G high power Radio Card
4.940GHz to 5.825GHz Frequency Range
2 x 5G MMCX Connectors
20MHz/40MHz/80MHz Bandwidth
Support 11AC/AN
RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals
Parameter
| Rating
| Unit
|
Supply Voltage
| 3.3V(MINIPCIE)
| V
|
Operating Temperature Range
| -40 to +60
| ºC
|
Storage Temperature Range
| -65 to +105
| ºC
|
Operating Humidity Range
| 5 to +95 (non-condensing)
| %
|
Storage Humidity Range
| 0 to +90 (non-condensing)
| %
|
Symbol
| Parameter
|
CPU
| QCA9882
|
Antenna Connector
| 2 x 5G MMCX connectors
|
ROHS Compliance
| YES
|
Dimension
| 50mm x 30mm x 16mm
|
Operating Mode
| Data Rate
| Power
| Tolerance
|
1 Chain
| 2 Chains
|
802.11a
| 6 Mbps
| 25dBm
| 28dbm
| ±2dB
|
54 Mbps
| 21dBm
| 24dbm
| ±2dB
|
802.11n HT20
| MCS0, MCS8
| 25dBm
| 28dbm
| ±2dB
|
MCS7, MCS15
| 20dBm
| 23dbm
| ±2dB
|
802.11n HT40
| MCS0, MCS8
| 25dBm
| 28dbm
| ±2dB
|
MCS7, MCS15
| 20dBm
| 23dbm
| ±2dB
|
802.11ac
| MCS0, MCS10,MCS20
| 25dBm
| 28dbm
| ±2dB
|
MCS9,MCS19,MCS29
| 17dBm
| 20dbm
| ±2dB
|
Operating Mode
| Data Rate
| Sensitivity
|
802.11a
| 6 Mbps
| -96dBm
|
54 Mbps
| -78dBm
|
802.11n HT20
| MCS0, MCS8
| -92dBm
|
MCS7, MCS15
| -73dBm
|
802.11n HT40
| MCS0, MCS8
| -90dBm
|
MCS7, MCS15
| -70dBm
|
>>
