High Quality 300 Tons Per Hour PF1315 Impact Crusher for Stone Crushing Plant

Product Description

High Quality Impact Crusher For Stone Crushing Plant Product DescriptionThe impact crusher is a new generation of impact crusher designed by our company in combination with domestic and foreign advanced technologies to meet the needs of customers for low investment cost, energy saving and low consumption,it is often used in conjunction with jaw crushers for medium and fine crushing of medium-hard materials,it is the preferred model of secondary crushing equipment in major sandstone and mineral processing production lines.
PF series of equipment includes secondary and tertiary impact plate which can handle the materials less than 100-800mm in the length.It is suitable to crush the medium hard material with compressive resistance of 350Mpa. Working principle and product structureIt is mainly composed of rack, feed hopper, plate hammer, impact plate, discharge device, motor, transmission device, and other components.Crushing mainly relies on impact energy. Driven by a motor, the rotor rotates at a high speed. When the material enters the plate hammer action zone, it collides with the plate hammer on the rotor and is broken, then it is thrown onto the impact device and broken again. Then, it bounces back from the impact liner to the plate hammer action zone and is broken again. This process is repeated, with the material entering the first, second, and third impact chambers from large to small for repeated crushing until the material is broken to the required particle size, Discharge from the discharge port.
More details:
Product Parameters

Model	Specification(mm)	Feeding Inlet Size(mm)	Feed Size(mm)	Production Capacity(t/h)	Power(kw)	Gross Weight(t)	Overall Size(mm)
PF1007	Φ1000*700	400*730	300	30-70	45	12	2330*1660*2300
PF1010	Φ1000*1050	400*1080	350	50-90	55	15	2370*1700*2390
PF1210	Φ1250*1050	400*1080	350	70-130	110	17.7	2680*2160*2800
PF1214	Φ1250*1400	400*1430	350	100-180	132	22.4	2650*2460*2800
PF1315	Φ1320*1500	860*1520	500	130-250	200	27	3180*2720*3120
PF1320	Φ1320*2000	860*2030	500	160-350	250	30	3200*3100*3120
PF1520	Φ1500*2000	990*2030	700	200-550	315	50	3960*3560*3330
PF1820	Φ1800*2000	1260*2030	800	400-800	630	83	4400*3860*4010

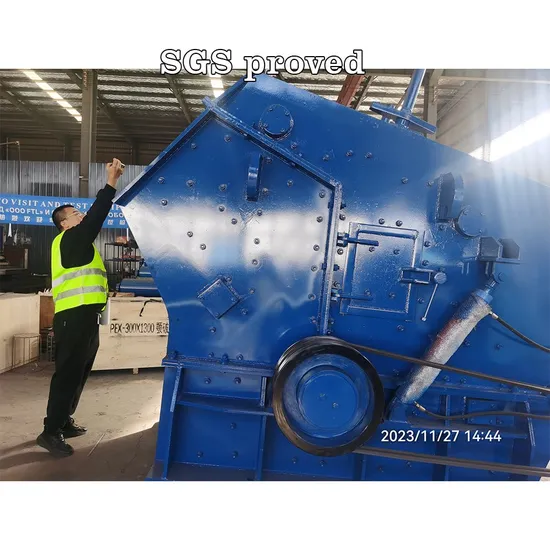

SGS inspection packing & shipping Company Profile

---
