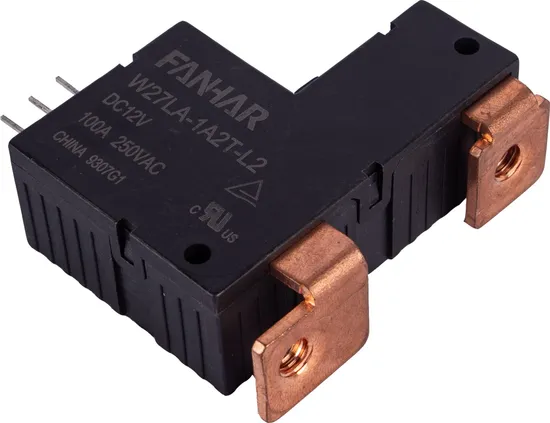

W27la New Energy Relay 120A Switching Capability

Product Description

1. 120A switching capability 2. It meets the DC load capacity of DC60V and 35A 3. Single coil and double coils are all available 4. Contact on and off can be controlled by manual control switch 5. Provide the contact gap of the product is ≥ 3mm,it meets the Europe standard of VDE0126 from Europe 6. Breakdown voltage (between contact and coil):4KV 7. Environment-friendly product (RoHS compliant) 8 Outline Dimensions:(58.0×40.0×20.8)mm 9. Main application:New energy and PV industry(Photovoltaic new energy) and Industry control
NOTE 1.With the consideration of shock risen from transit and relay mounting,relay's initial state might be changed ,please impose pulse voltage to reset the relay before using(rated coil voltage,impulse width≥5 times operation time. 2 In order to maintain the initial performance parameters of the relay, please be careful not to drop the product; 3 In order to maintain the "set" or "reset" status, energized voltage to coil should reach the rated voltage, impulse width should be 5 times more than "set" or "reset" time. Do not energize the voltage to "set" coil and "reset" coil simultaneously. 4 The specification is for reference only.Specifications subject to change without notice.

---
