Textile Circular Tubular Knitting Enzyme Washing Rope Opener Detwister Slitting Machine

Product Description

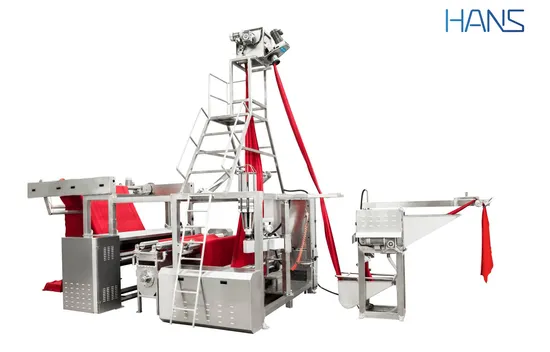

Tubular slitting machine
Features:
- The slitting line major used for slitting and opening of knitted and woven fabrics, both tubular and open width form fabrics
- Automatic rope detwisting made by stainless steel, mounted on a fixed tubular flatform
- High automation grade with PLC and inverter system
- High efficiency washing tank after slitting basket
- Fully automatic grade slitting basket
- Can be used for long pile towel fulffy washing process
- Single padder or double padder for dewatering or chemical permeation
- Automatic rotary filtering devecie
- Low tension washing effect
- English version operation system
- Complete finishing line, which place before stenter finishing machine
Specification

Model	HSL-2600
Pre squeezer unit	With small J scray device for fabric storage
Max. working width	2400mm
Speed	100m/min
Slitting basket	E+L
Machine body	Stainless steel 304
Washing tank	Single tank or double washing tank
Automatic filtering device	Rotary filtering
Padder	High efficieny padder
Touch Screen Controller	All production data can be controlled by touch screen controller

Main Flow Chart:
Pre squeezer unit → Rope opener → Slitting device → Centering unit → Tension sensor → Washing tank → Padder → Plaiter
Machine Layout :
Rope Opener
Features:
- Suitable for open width knit fabric after dyeing process rope opening and detwisting process
- Stainless steel material body, rust proof, which provide a long working life
- Fully automatic automation system
- Speed adjustable by operation panel
- Automatic rope opening
- Rotation table can be choosed as option for fabric entry from trolley
Specification:

Model	HSL-2600
Max. working width	2400mm
Material of body	Stainless steel 304
Speed	5-80m/min (Adjustable)
Voltage	380V/50HZ
Automation	PLC+ Inverter
Operation panel	English Version
