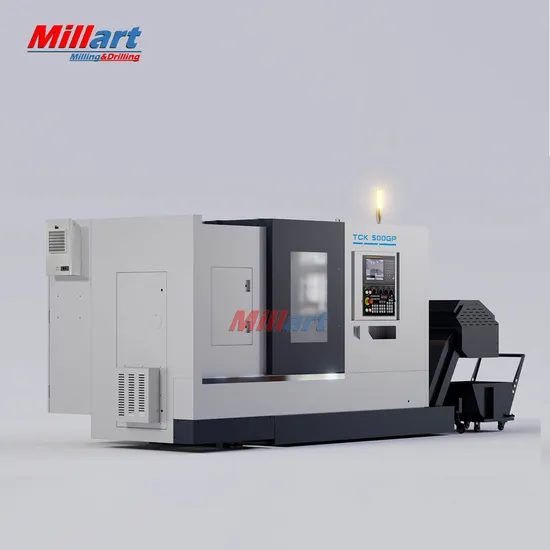

High Quolity Horizontal Slant Bed CNC Lathe Tck5052, Metal CNC Lathe, CNC Slant Bed Turning Center Lathe Machine for Metal Processing

Product Description

Product description:
Technical parameter :

Specifications	TCK5052
Max.swing over bed (mm)	Φ500
Max.turning diameter (mm)	Φ500
Max.swing over cross slide (mm)	Φ230
Max.turning length (mm)	520
Spindle nose	A2-6
Chuck size	8"
Spindle motor power (kw)	11-15
Max.spindle speed (rpm)	4200
Spindle bore (mm)	Φ66
Max turning Dia Bar (mm)	Φ52
X/Z axis leadscrew (mm)	32/40
X axis limit Travel (mm)	270
Z axis limit Travel (mm)	610
X/Z axis motor torque (N/m)	11/11
X/Z axis linear guideway (mm)	45/45
X/Z axis accuracy (mm)	0.008
X/Z axis repeat accuracy (mm)	0.005
Tailstock quill diameter (mm)	Φ80
Tailstock quill travel (mm)	80
Tailstock travel (mm)	480
Tailstock taper	MT5
Machine dimension (mm)	1800x1320x1438
Weight (kg)	2500

Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.
