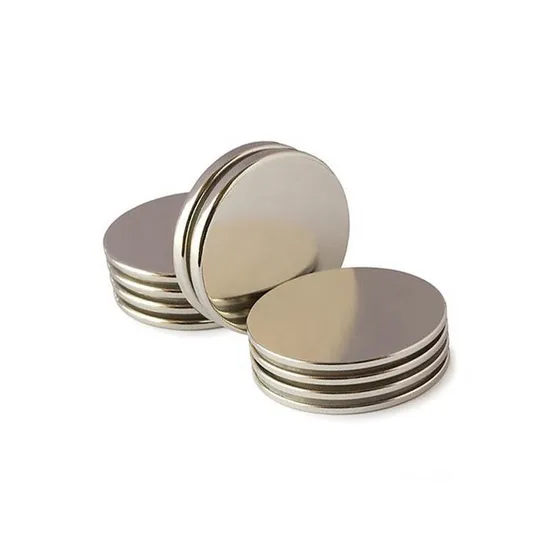

D40X2/3/5/10/15/20/30mm Round Rare Earth Neodymium Disc Magnets for Sale

Product Description

Product Description Disc Neodymium Magnets/Cylinder Magnets/Rod Magnets are used for high-performance motors, jewelry clasps, audio equipment, hanging artwork/signs, etc. The normal surface treatment is nickel/zinc plating and black epoxy resin coating.

Product Name	D40 x 2/3/5/10/15/20/30 mm Thin Rare Earth Neodymium Disc Magnets For Sale
Magnet Shape	Disc Shape
Dimensions	D40 x 2/3/5/10/15/20/30 mm
Magnet Material	NdFeB
Grade	N33-N52 (M, H, SH, UH, EH, AH)
Tolerance	0.05mm ~ 0.1mm
Plating/Coating	Nickel/Epoxy Resin/Zinc, etc.
Magnetism Direction	Through the thickness
Country Of Origin	China

Technical Data
Size Information As almost all the magnets are customized according to customers' requirement, below we list the maximum size and minimum size we can make for some typical shapes of magnets for your reference.

Magnets Shapes	Max. Size (mm)	Min. Size (mm)	Remarks
Block	240 x 100 x 50	2 x 2 x 1	Optional customized countersunk boreholes
Cylinder/Disc	D240 x 50	D2 x 1
Ring	OD240 x 50 (ID customized)	D5 x 1 x 1
Arc/Tile	Customized

Some disc neodymium magnets sizes we made in the chart below for your reference.

Disc Neodymium Magnet Ø4mm, Height 1mm	Disc Neodymium Magnet 3/16" Dia. x 2" Thick
Disc Neodymium Magnet Ø4mm, Height 1.5mm	Disc Neodymium Magnet 1/4" Dia. x 3/8" Thick
Disc Neodymium Magnet Ø4mm, Height 2mm	Disc Neodymium Magnet 1/4" Dia. x 1/2" Thick
Disc Neodymium Magnet Ø4mm, Height 3mm	Disc Neodymium Magnet 1/4" Dia. x 1" Thick
Disc Neodymium Magnet Ø4mm, Height 4mm	Disc Neodymium Magnet 1/4" Dia. x 1 1/4" Thick
Disc Neodymium Magnet Ø5mm, Height 3mm	Disc Neodymium Magnet 1/4" Dia. x 1 1/2" Thick
Disc Neodymium Magnet Ø5mm, Height 4mm	Disc Neodymium Magnet 1/4" Dia. x 2" Thick
Disc Neodymium Magnet Ø5mm, Height 5mm	Disc Neodymium Magnet 5/16" Dia. x 1/32" Thick
Disc Neodymium Magnet Ø6mm, Height 1mm	Disc Neodymium Magnet 5/16" Dia. x 3/32" Thick
Disc Neodymium Magnet Ø6mm, Height 2mm	Disc Neodymium Magnet 5/16" Dia. x 1/4" Thick
Disc Neodymium Magnet Ø6mm, Height 3mm	Disc Neodymium Magnet 5/16" Dia. x 3/8" Thick
Disc Neodymium Magnet Ø6mm, Height 4mm	Disc Neodymium Magnet 5/16" Dia. x 1/2" Thick
Disc Neodymium Magnet Ø6mm, Height 6mm	Disc Neodymium Magnet 5/16" Dia. x 1" Thick
Disc Neodymium Magnet Ø8mm, Height 4mm	Disc Neodymium Magnet 3/8" Dia. x 1/16" Thick
Disc Neodymium Magnet Ø8mm, Height 5mm	Disc Neodymium Magnet 3/8" Dia. x 3/8" Thick
Disc Neodymium Magnet Ø8mm, Height 6mm	Disc Neodymium Magnet 3/8" Dia. x 1/2" Thick
Disc Neodymium Magnet Ø8mm, Height 8mm	Disc Neodymium Magnet 3/8" Dia. x 5/8" Thick
Disc Neodymium Magnet Ø9mm, Height 3mm	Disc Neodymium Magnet 3/8" Dia. x 3/4" Thick
Disc Neodymium Magnet Ø9mm, Height 5mm	Disc Neodymium Magnet 3/8" Dia. x 1" Thick
Disc Neodymium Magnet Ø10mm, Height 0.6mm	Disc Neodymium Magnet 3/8" Dia. x 1 1/2" Thick
Disc Neodymium Magnet Ø10mm, Height 5mm	Disc Neodymium Magnet 3/8" Dia. x 2" Thick
Disc Neodymium Magnet Ø10mm, Height 10mm	Disc Neodymium Magnet 7/16" Dia. x 1/16" Thick
Disc Neodymium Magnet Ø12mm, Height 4mm	Disc Neodymium Magnet 7/16" Dia. x 3/32" Thick
Disc Neodymium Magnet Ø12mm, Height 5mm	Disc Neodymium Magnet 7/16" Dia. x 1/10" Thick
Disc Neodymium Magnet Ø12mm, Height 6mm	Disc Neodymium Magnet 7/16" Dia. x 1/8" Thick
Disc Neodymium Magnet Ø12mm, Height 8mm	Disc Neodymium Magnet 7/16" Dia. x 3/16" Thick
Disc Neodymium Magnet Ø12mm, Height 10mm	Disc Neodymium Magnet 7/16" Dia. x 2/10" Thick
Disc Neodymium Magnet Ø15mm, Height 5mm	Disc Neodymium Magnet 7/16" Dia. x 1/4" Thick
Disc Neodymium Magnet Ø15mm, Height 8mm	Disc Neodymium Magnet 7/16" Dia. x 3/8" Thick
Disc Neodymium Magnet Ø20mm, Height 4mm	Disc Neodymium Magnet 7/16" Dia. x 7/16" Thick
Disc Neodymium Magnet Ø20mm, Height 5mm	Disc Neodymium Magnet 7/16" Dia. x 1/2" Thick
Disc Neodymium Magnet Ø20mm, Height 6mm	Disc Neodymium Magnet 7/16" Dia. x 3/4" Thick
Disc Neodymium Magnet Ø20mm, Height 7mm	Disc Neodymium Magnet 7/16" Dia. x 1" Thick
Disc Neodymium Magnet Ø20mm, Height 8mm	Disc Neodymium Magnet 1/2" Dia. x 1/32" Thick
Disc Neodymium Magnet Ø20mm, Height 9mm	Disc Neodymium Magnet 1/2" Dia. x 1/16" Thick
Disc Neodymium Magnet Ø20mm, Height 10mm	Disc Neodymium Magnet 1/2" Dia. x 3/32" Thick
Disc Neodymium Magnet Ø20mm, Height 12mm	Disc Neodymium Magnet 1/2" Dia. x 1/10" Thick
Disc Neodymium Magnet Ø20mm, Height 15mm	Disc Neodymium Magnet 1/2" Dia. x 1/8" Thick
Disc Neodymium Magnet Ø20mm, Height 20mm	Disc Neodymium Magnet 1/2" Dia. x 3/16" Thick
Disc Neodymium Magnet Ø25mm, Height 3mm	Disc Neodymium Magnet 1/2" Dia. x 2/10" Thick
Disc Neodymium Magnet Ø25mm, Height 5mm	Disc Neodymium Magnet 1/2" Dia. x 1/4" Thick
Disc Neodymium Magnet Ø25mm, Height 7mm	Disc Neodymium Magnet 1/2" Dia. x 3/8" Thick
Disc Neodymium Magnet Ø30mm, Height 3mm	Disc Neodymium Magnet 1/2" Dia. x 1/2" Thick
Disc Neodymium Magnet Ø30mm, Height 7mm	Disc Neodymium Magnet 1/2" Dia. x 5/8" Thick
Disc Neodymium Magnet Ø30mm, Height 10mm	Disc Neodymium Magnet 1/2" Dia. x 3/4" Thick
Disc Neodymium Magnet Ø30mm, Height 15mm	Disc Neodymium Magnet 1/2" Dia. x 7/8" Thick
Disc Neodymium Magnet Ø35mm, Height 5mm	Disc Neodymium Magnet 1/2" Dia. x 1" Thick
Disc Neodymium Magnet Ø35mm, Height 20mm	Disc Neodymium Magnet 1/2" Dia. x 1 1/2" Thick
Disc Neodymium Magnet Ø45mm, Height 30mm	Disc Neodymium Magnet 1/2" Dia. x 2" Thick
Disc Neodymium Magnet Ø60mm, Height 5mm	Disc Neodymium Magnet 1/2" Dia. x 2 1/2" Thick
Disc Neodymium Magnet Ø70mm, Height 35mm	Disc Neodymium Magnet 1/2" Dia. x 3" Thick
Cylinder Magnet 1/8" x 1/2" Neodymium Rare Earth	Disc Neodymium Magnet 9/16" Dia. x 1/32" Thick
Cylinder Magnet 1/8" x 3/4" Neodymium	Disc Neodymium Magnet 9/16" Dia. x 1/16" Thick
Cylinder Magnet 5/16" x 1/2" Neodymium	Disc Neodymium Magnet 9/16" Dia. x 3/32" Thick
Cylinder Magnet Neodymium 3/8" x 3/8" Rare Earth	Disc Neodymium Magnet 9/16" Dia. x 1/10" Thick
Cylinder Magnet Neodymium 1/2" x 1/2"	Disc Neodymium Magnet 9/16" Dia. x 1/8" Thick
Neodymium Cylinder Magnet Dia 7/8" x 7/8"	Disc Neodymium Magnet 9/16" Dia. x 3/16" Thick
5/32" x 3/4" Neodymium Rare Earth Cylindrical Magnet	Disc Neodymium Magnet 9/16" Dia. x 2/10" Thick
5/32" x 1" Neodymium Rare Earth Cylindrical Magnet	Disc Neodymium Magnet 9/16" Dia. x 1/4" Thick
Cylindrical Magnet Rare Earth Neodymium 3/16" x 3/16"	Disc Neodymium Magnet 9/16" Dia. x 3/8" Thick
Neodymium Cylindrical Magnet 3/16" x 1/4"	Disc Neodymium Magnet 9/16" Dia. x 1/2" Thick
3/16" x 3/8" Neodymium Rare Earth Cylindrical Magnet	Disc Neodymium Magnet 9/16" Dia. x 9/16" Thick
Cylindrical Magnet Neodymium Rare Earth 3/16" x 1/2"	Disc Neodymium Magnet 9/16" Dia. x 5/8" Thick
Neodymium Cylindrical Magnet Dia 1/4" x 0.2" Epoxy	Disc Neodymium Magnet 9/16" Dia. x 3/4" Thick
Cylindrical Magnet 1/4" x 1/4" Neodymium	Disc Neodymium Magnet 9/16" Dia. x 1" Thick
1/4" x 1/4" Neodymium Rare Earth Cylindrical Magnet	Disc Neodymium Magnet 5/8" Dia. x 1/32" Thick
Cylindrical Rare Earth Neodymium Magnet N52	Disc Neodymium Magnet 5/8" Dia. x 1/16" Thick
3/4" x 3/4" Neodymium Rare Earth Cylindrical Magnet	Disc Neodymium Magnet 5/8" Dia. x 3/32" Thick
Cylindrical Magnet 3/4" x 1" Neodymium Rare Earth	Disc Neodymium Magnet 5/8" Dia. x 1/10" Thick
Neodymium Rare Earth Cylindrical Magnet 7/8" x 1"	Disc Neodymium Magnet 5/8" Dia. x 1/8" Thick
1" x 1" Neodymium Rare Earth Cylindrical Magnet	Disc Neodymium Magnet 5/8" Dia. x 3/16" Thick
1" x 1-1/2" Neodymium Rare Earth Cylindrical Magnet	Disc Neodymium Magnet 5/8" Dia. x 3/8" Thick
Disc Magnet 1/4" x 3/16" Neodymium	Disc Neodymium Magnet 5/8" Dia. x 1/2" Thick
Rare Earth Disc Magnet 5/16" x 1/16" Neodymium	Disc Neodymium Magnet 5/8" Dia. x 5/8" Thick
5/16" x 1/4" Neodymium Rare Earth Disc Magnet	Disc Neodymium Magnet 5/8" Dia. x 3/4" Thick
Disc Magnet Neodymium 3/8 x 1/16"	Disc Neodymium Magnet 5/8" Dia. x 1" Thick
Disc Magnet Neodymium 3/8" x 1/8"	Disc Neodymium Magnet 11/16" Dia. x 1/16" Thick
Neodymium Disc Magnet 3/8" x 3/16" With #4	Disc Neodymium Magnet 11/16" Dia. x 1/10" Thick
3/8" x 1/4" Neodymium Rare Earth Disc Magnet	Disc Neodymium Magnet 11/16" Dia. x 1/8" Thick
Disc Magnet Rare Earth Neodymium 1/2" x 1/32"	Disc Neodymium Magnet 11/16" Dia. x 1/4" Thick
Disc Magnet Neodymium Epoxy Coated 1/2" x 1/16"	Disc Neodymium Magnet 11/16" Dia. x 1/2" Thick
Disc Magnet With #6 Countersink 1/2" x 1/8"	Disc Neodymium Magnet 3/4" Dia. x 1/8" Thick
Disc Magnet 1/2" x 1/8"	Disc Neodymium Magnet 3/4" Dia. x 3/16" Thick
Neodymium Rare Earth 1/2" x 3/16" Disc Magnet	Disc Neodymium Magnet 3/4" Dia. x 2/10" Thick
Disc Magnet 1/2" x 1/4" Epoxy Coated Neodymium	Disc Neodymium Magnet 3/4" Dia. x 3/8" Thick
Disc Magnet 1/2" x 1/4" Plastic Coated Neodymium	Disc Neodymium Magnet 3/4" Dia. x 1/2" Thick
1/2" x 1/4" Neodymium Rare Earth Disc Magnet	Disc Neodymium Magnet 3/4" Dia. x 5/8" Thick
1/2" x 5/16" Neodymium Rare Earth Disc Magnet	Disc Neodymium Magnet 3/4" Dia. x 3/4" Thick
1/2" x 5/8" Neodymium Rare Earth Disc Magnet Plastic Coated	Disc Neodymium Magnet 3/4" Dia. x 7/8" Thick
Neodymium Disc Magnet 1/2" x 3/8" Rare Earth	Disc Neodymium Magnet 3/4" Dia. x 1" Thick
Disc Magnet 5/8" x 1/16" Neodymium	Disc Neodymium Magnet 3/4" Dia. x 1 1/2" Thick
5/8" x 3/32" Neodymium Rare Earth Disc Magnet	Disc Neodymium Magnet 3/4" Dia. x 2" Thick
Disc Magnet Neodymium 5/8" x 1/8"	Disc Neodymium Magnet 13/16" Dia. x 1/32" Thick
5/8" x 5/8" Neodymium Rare Earth Disc Magnet	Disc Neodymium Magnet 13/16" Dia. x 1/16" Thick
3/4" x 1/32" Neodymium Rare Earth Disc Magnet	Disc Neodymium Magnet 13/16" Dia. x 3/32" Thick
Disc Magnet W/ 3M Adhesive 3/4" x 1/16" Neodymium	Disc Neodymium Magnet 13/16" Dia. x 1/8" Thick
Neodymium Disc Magnet 3/4" x 1/16" Rare Earth	Disc Neodymium Magnet 13/16" Dia. x 1/4" Thick
3/4" x 1/8" Neodymium Rare Earth Disc Magnet	Disc Neodymium Magnet 13/16" Dia. x 1/2" Thick
3/4" x 3/16" Neodymium Rare Earth Disc Magnet	Disc Neodymium Magnet 7/8" Dia. x 3/16" Thick
3/4" x 1/4" Neodymium Rare Earth Disc Magnet	Disc Neodymium Magnet 7/8" Dia. x 1/4" Thick
Neodymium Rare Earth Disc Magnet 3/4" x 3/8"	Disc Neodymium Magnet 7/8" Dia. x 3/4" Thick
Neodymium Disc Magnet 3/4" x 1/2"	Disc Neodymium Magnet 7/8" Dia. x 7/8" Thick
7/8" x 3/16" Neodymium Rare Earth Disc Magnet	Disc Neodymium Magnet 7/8" Dia. x 1" Thick
7/8" x 1/2" Neodymium Rare Earth Disc Magnet	Disc Neodymium Magnet 7/8" Dia. x 1 1/8" Thick
Disc Magnet Neodymium 1" x 1/16"	Disc Neodymium Magnet 15/16" Dia. x 1/32" Thick
Disc Magnet Neodymium 1" x 1/8" Epoxy Coated	Disc Neodymium Magnet 15/16" Dia. x 3/32" Thick
Disc Magnet Neodymium Rare Earth 1" x 1/8" N52	Disc Neodymium Magnet 15/16" Dia. x 1/2" Thick
1" x 3/16" Neodymium Rare Earth Disc Magnet	Disc Neodymium Magnet 1" Dia. x 3/16" Thick
1" x 1/4" Neodymium Rare Earth Disc Magnet	Disc Neodymium Magnet 1" Dia. x 1/4" Thick
1" x 5/16" Neodymium Rare Earth Disc Magnet	Disc Neodymium Magnet 1" Dia. x 1/2" Thick
1" x 3/8" Neodymium Rare Earth Disc Magnet	Disc Neodymium Magnet 1" Dia. x 5/8" Thick
Neodymium Rare Earth Disc Magnet 1" x 1/2"	Disc Neodymium Magnet 1" Dia. x 3/4" Thick
1" x 3/4" Neodymium Rare Earth Disc Magnet	Disc Neodymium Magnet 1" Dia. x 7/8" Thick
1.26" x 1/16" Neodymium Rare Earth Disc Magnet	Disc Neodymium Magnet 1" Dia. x 1" Thick
1.26" x 1/8" Neodymium Rare Earth Disc Magnet	Disc Neodymium Magnet 1" Dia. x 1 1/2" Thick
1.26" x 3/16" Neodymium Rare Earth Disc Magnet	Disc Neodymium Magnet 1" Dia. x 2" Thick
Disc Magnet Neodymium 1.26" x 1/4"	Disc Neodymium Magnet 1 1/4" Dia. x 1/8" Thick
1-1/2" x 1/8" Neodymium Rare Earth Disc Magnet	Disc Neodymium Magnet 1 1/4" Dia. x 1/4" Thick
Disc Magnet Neodymium 1-1/2" x 1/4"	Disc Neodymium Magnet 1 1/4" Dia. x 1/2" Thick
1-1/2" x 1/2" Neodymium Rare Earth Disc Magnet	Disc Neodymium Magnet 1 1/2" Dia. x 1/4" Thick
1-1/2" x 1" Neodymium Rare Earth Disc Magnet	Disc Neodymium Magnet 1 1/2" Dia. x 1" Thick
1-3/4" x 1/8" Neodymium Rare Earth Disc Magnet	Disc Neodymium Magnet 1 1/2" Dia. x 1 1/2" Thick
1-3/4" x 1/4" Neodymium Rare Earth Disc Magnet	Disc Neodymium Magnet 1 3/4" Dia. x 1/4" Thick
Disc Neodymium Magnet 1/16" Dia. x 3/4" Thick	Disc Neodymium Magnet 1 3/4" Dia. x 1/2" Thick
Disc Neodymium Magnet 1/16" Dia. x 1" Thick	Disc Neodymium Magnet 2" Dia. x 1/2" Thick
Disc Neodymium Magnet 1/8" Dia. x 1/4" Thick	Disc Neodymium Magnet 2" Dia. x 1" Thick
Disc Neodymium Magnet 1/8" Dia. x 3/8" Thick	Disc Neodymium Magnet 2" Dia. x 2" Thick
Disc Neodymium Magnet 1/8" Dia. x 7/8" Thick	Disc Neodymium Magnet 2 1/2" Dia. x 1/4" Thick
Disc Neodymium Magnet 1/8" Dia. x 1" Thick	Disc Neodymium Magnet 2 1/2" Dia. x 1/2" Thick
Disc Neodymium Magnet 1/8" Dia. x 1 1/2" Thick	Disc Neodymium Magnet 2 1/2" Dia. x 1" Thick
Disc Neodymium Magnet 1/8" Dia. x 2" Thick	Disc Neodymium Magnet 3" Dia. x 1/8" Thick
Disc Neodymium Magnet 5/32" Dia. x 1/10" Thick	Disc Neodymium Magnet 3" Dia. x 1/4" Thick
Disc Neodymium Magnet 3/16" Dia. x 3/4" Thick	Disc Neodymium Magnet 3" Dia. x 1/2" Thick
Disc Neodymium Magnet 3/16" Dia. x 1" Thick	Disc Neodymium Magnet 3" Dia. x 1" Thick
Disc Neodymium Magnet 3/16" Dia. x 1 1/2" Thick	Disc Neodymium Magnet 3" Dia. x 1 1/2" Thick

Neodymium Magnets Production Process
Neodymium Magnets Performance Datasheet
Neodymium Magnets Magnetization Directions
Neodymium Magnets Surface Treatment

Surface Treatment	Process	Thickness	Color	SST	PCT
		(μm)		(Hours)	(Hours)
Nickel	Ni	10 ~ 20	Bright Silver	> 24 ~ 72	> 24 ~ 72
	Ni+Cu+Ni
Black Nickel	Ni+Cu+Ni	10 ~ 20	Bright Black	> 48 ~ 96	> 48
Cr3+Zinc	Zn	5 ~ 8	Bright Blue	> 16 ~ 48	---
	Cr3+Zn		Shining Color	> 36 ~ 72
Sn	Ni+Cu+Ni+Sn	10 ~ 25	Silver	> 36 ~ 72	> 48
Au	Ni+Cu+Ni+Au	10 ~ 15	Gold	> 12	> 48
Ag	Ni+Cu+Ni+Ag	10 ~ 15	Silver	> 12	> 48
Epoxy	Epoxy	10 ~ 20	Black/ Grey	> 96	---
	Ni+Cu+Epoxy	15 ~ 30		> 120	---
	Zn+Epoxy	15 ~ 25		> 120	---
Passivation	---	1 ~ 3	Dark Grey	Temporary Protection	---
Phosphate	---	1 ~ 3	Dark Grey	Temporary Protection	---

Remarks:
1. The SST results differ from coating. In general, Salt Spray Test result for the magnets with barrel plating (normally for small size of magnets), is better than the ones with rack plating (normally for big size of magnets).
2. Salt Spray Test (SST) condition: 5% NaCl, 35°C, continuously spray a certain time, test whether there is corrosion on plating/coating surface.
3. Pressure Cooking Test (PCT) condition: 2 atm, 95% RH (Relative Humidity), 121°C to test the plating/coating adhesion. (Zinc, Passivated/Phosphated, and Epoxy not suitable for PCT).
4. Other test methods for plating/coating: Drop Test, Cross Cut Test, Heating and Spilling Test, Constant Temperature, Humidity Test, etc. Physical Properties of Neodymium Magnets

Curie Temperature (°C)	310~380
Maximum Working Temperature (°C)	80~230
Electrical Resistivity (µ.cm)	110~170
Hardness (Hv)	560~580
Density (g/cm3)	7.4~7.8
Relative Recoil Permeability (µrec)	1.05
Saturation Field Strength (kOe/kA/m)	(30-40)/(2,400-3,200)
Temp. Coefficient of Br (T.C.α (Br)) (%/°C)	-0.12 ~ -0.10
Temp. Coefficient of Hcj (T.C.β (Hcj)) (%/°C)	-0.6

Packing & Shipping Packing - Inner Packaging
- Standard Air and Express Packaging
- Standard Sea Packaging
Shipping
-When the gross weight is below 50kgs, we recommend to send it after packed in magnetism shielded cartons by express. -When the gross weight is between 50-100kgs, it can be sent by express or air. -When the gross weight is over 100kgs, we recommend to ship it by sea.
Remarks: We have good contract prices with FedEx, DHL, UPS and TNT. Of course you can choose freight collect with your international courier's account no. For air and sea shipping, we have an experienced logistics team to handle the delivery and our own forwarders that we have been cooperating with for many years. If you would like to ask your forwarder to deal with the delivery, it is also okay with us. Company Introduction Hangzhou Shengyuan Machinery Co., Ltd. is specialized in manufacturing permanent magnets and magnetic assemblies. Our main products include neodymium magnets, SmCo magnets, AlNiCo magnets, ferrite magnets, pot magnets, magnetic hooks, fishing magnets, magnetic lifters, magnetic rods & grates, magnetic pushpins, magnetic tool holders and magnetic chucks, etc. We have a professional R&D team with plenty expertise and a sales team with rich experience in overseas business. Furthermore, all our products are manufactured with advanced equipment and strict QC procedures in order to ensure high quality. Our company's core value is "Building A Good Reputation With Quality Products And Excellent Service".
With the advanced management concepts and experienced team, we have exported our products to many countries and regions all over the world, especially to North America and Europe. Our products enjoy a good reputation among our customers.
We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits. Add.: No. 66, Leda Rd., Xiaoshan Economic & Technological Development Zone, Hangzhou City, Zhejiang Province, 311200 China. CONTACT US...
Why Choose Us 1. Factory direct price makes our customers more competitive in the market. 2. OEM and customization is welcome.
3. Quick response to customers.
4. Professional R&D team with extensive expertise in the area of magnets and magnetic assembies . Most of our engineers at least have 10 years experience.
5. Advanced production and inspection equipment.
6. Strict quality control system. ISO9001:2015 and RoHS
7. Experienced logistics team to deal with FOB, CIF and DDU terms. FAQ -What information should I provide in my inquiry? 1. Maximum working temperature. 2. Magnet's grade or magnetic flux density at the center.
3. Magnet dimensions and tolerance.
4. Any surface treatment on the magnet?
5. Order quantity.
6. Any special requirements for the packaging and transportation? -How soon can I expect to get your reply?
Normally you can receive our reply within 1 hour during our work time 08:00 - 18:00(UTC-8). -How will you ship the samples to me? We will use international express such as FedEx, DHL, UPS and TNT. We have a good contract price with them. -What is the normal delivery time for the customized magnet's order? The normal delivery time is about 20 days. -How about the payment methods? We accept T/T, PayPal, Western Union and L/C

---

>> African Chicken Farm Ladder Layer Cage with Egg Collection Fecal Cleaning
>> Factory Concrete Rebar Locator Scanner / Detector / Covermeter / concrete rebar locator
>> 20kHz Ultrasonic Machining Hard and Brittle Materials Hole Drilling
>> Professional High Quality Industrial Stainless Steel Food Pharmaceutical Chemical Horizontal Single Shaft Sigma Blade Kneading Mixer
>> Milling X6128 Digital Readout Drilling Milling Machines
>> shisha tobacco molasses packing machine hookah shisha tobacco molasses filling and packaging machine shisha hookah molasses
>> V-Show 32PCS Pixel Tube with Flight Case Top Sales LED Pixel Bar Light
>> Single Beams S Spun Bond Non Woven Fabric Machinery
>> Women′s Luna Cork Footbed Slide Sandals
>> HOT Soft Cover Liquid Silicone TPU Phone case Colorful cell phone case for iPhone 13 case
>> corrugated perforated metal sheet etched perforated metal
>> 115 230VAC IP54 Louver Enclosure Panel Cabinet Fan Filter
>> 4 core -20 core alarm cable
>> Garlic Peeling Machine Kitchen Appliance Peeler Garlic Peeling Processing Machine
>> Printed Polyester Satin Ribbon Custom 3D Gold Foil Logo Grosgrain Ribbon
>> Adult Woollen Thermal Socks with 10% Cashmere Boot Socks
>> Professional Engineering Solutions for Custom CNC Machining and Metal Products
>> Cheap CNC Milling Machine Small Milling Machine
>> Xa7150, Bed-Type Milling Machine, , Meehanite Cast-Iron Construction,
>> PE PP Plastic Film Washing Recycling Line Clean PE PP Scraps
