Hsnc-500 Infrared Granite Bridge Saw Stone Cutter for Basin Countertop

Product Description

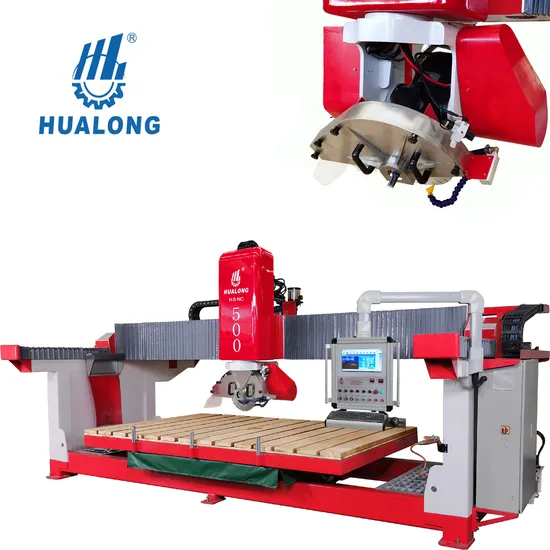

Data Control Bridge Stone Slab Cutting Machine HSNC-500

equipped with Siemens PLC, is applicable for cutting all kind of stone slabs, such as granite, marble, quartzite and artifical stone slab etc., especailly suitable for processing stone countertop with square sink. Main Features:
1) Controlled by Siemens PLC, operated expediently, accurately and stably. 2) One-button automatic vertical and horizontal cutting.
3) Cutting head available to rotate 0°-90°-180°-270° and positioning automatically. Blade can tilt 0-45° and do chamfering automatically.
4) With drilling & milling functions, make square sink processing easier and faster.
5) Working platform can rotate 0-360°,positioning at any angle, and tilt 85° for easy feeding.
6) Mono-block machine, easy for container loading and machine installation.
0°-90°-180°-270° automatic positioning and chamfering

TECHNICAL DATA FOR HSNC-500
Diameter of saw blade	400-500	mm
Dimension of working platform	330x200	cm
Max. cutting length	330	cm
Max. cutting thickness	140	mm
Max. lifting stroke	250	mm
Power of main motor	11	kw
Power of cutter frame reciprocating motor	1.5	kw
Power of crossbeam shifting motor	1.5	kw
Power of hydraulic station motor	2.2	kw
Power of lifting motor	1.5	kw
Gross Power	17.7	kw
Water consumption	2	m3/h
Gross weight	5400	kg
Dimensions (L x W x H)	570x326x277	cm

Detailed Images
Operating Control System

A) Siemens PLC with touch screen for easy setting and automatic processing. B) Mechanical buttons for main functions operating manually and easily.
Laser Reticule Apparatus
Origin: China
Used to aid for accurate alignment in processing.
Linear Guide
Brand: Hiwin
Original: Taiwan, China
Famous products, top quality used on crossbeam and carling for high precision of cutting and long lifespan.
Company Profile

Packaging
Size	570x326x277cm
Weight	5400kgs
Packaging details	1) All parts covered by pe film. 2) Spare and accessory parts packed in plywood cartons. 3) With steel ropes to fix in container, anti slip suitable for shipment.

---
