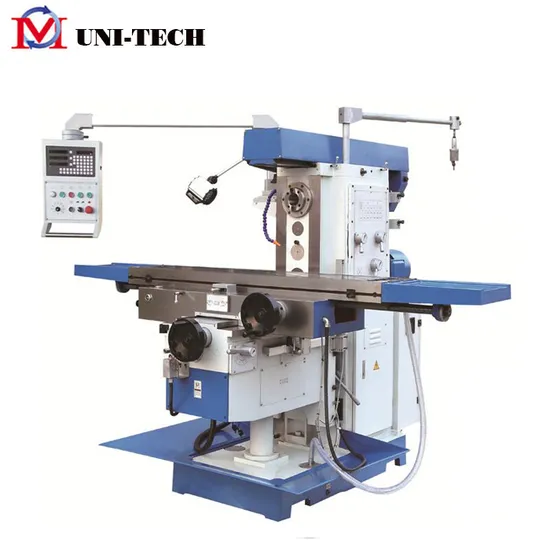

Universal Horizontal and Vertical Milling Machine

US$8,800.00-9,000.00 1 set (MOQ)

Basic Info.

Model NO.

XL6036

Structure

Horizontal

Milling Cutter Type

Vertical Milling Cutter

Milling Cutter Structure

Integral

Controlling Mode

Artificial

Automatic Grade

Semiautomatic

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Worktable Size

1325X360mm

Main Motor

5.5kw

Table Travel on X-Axis

750mm

Table Travel on Y-Axis

320mm

Table Travel on Z-Axis

460mm

Table Rapid Speed

1200/800/600mm/Min

T-Slot of Table

3-18-80

Table Feed

30-750/20-500/15-375

Spindle Speed

60-1800rpm

Arm Travel

500mm

Transport Package

Wooden Case, No Need Fumigation, Plastic Cover

Specification

CE, ISO9001

Trademark

UNI-TECH

Origin

Shandong, China

HS Code

8459590000

Production Capacity

80sets/Month

Product Description

Universal Horizontal and Vertical Milling Machine
Specification

Specification	Unit	XL6036 XL6032	XL6036C XL6032C	XL6036CL XL6032CL
Spindle taper	-	7:24 ISO50
Distance between spindle nose and table	mm	20-480	20-470
Distance from spindle axis to arm	mm	175
Spindle speed range	-	12steps 60~1800r.p.m
Table size	mm	1325X360 1325X320		1600X360 1600X320
Table travel(X/Y/Z)	mm	750/320/460	1100/320/450	1300/320/450
Table feed(X/Y/Z)	mm/min	30-750 / 20-500 / 15-375
Table rapid speed (X/Y/Z)	mm/min	1200/800/600
T-slots(NO:/width/pitch)	mm	3/18/80 3/18/70
Arm travel	mm	500
Main motor power	kw	5.5
Torque of X/Y/Z axis AC servo motor	N.m	10
Overall size	mm	1800X2100X1870	2245X2100X1870	2520X2100X1870
Net weight	kg	2450 2400	2500 2450	2550 2500

Standard Accessories

name	Specification Model	Qty
7:24 middle set o	7:24 ISO50/MS4	1set
Horizontal arbor assembly	Φ27	1 set
Horizontal arbor assembly	Φ32	1 set
Drawbar	M24	1 piece
Double-ended wrench	13*17	1 piece
Double-ended wrench	27*30	1 piece
Double-ended wrench	36*41	1 piece
Inner hexagonal wrench	5	1 piece
Inner hexagonal wrench	10	1 piece
Q13 Series Machine vice	QB160	1
sleeve	M24	2
Washer	-	2

Our Services
1. Your inquiry and email will be replied within 24hours.
2. If you need to develop products with your own specification, we can help you to work it out.
3. Always be honest, never lie to customer, and never declare anything we don't have.
4. Customer First:,we offer best Quality and Service!
FAQ
1. Payment Method:
30% deposit T/T in advance, rest against the copy of B/L or before delivery.
2. Delivery Time:
one week
3. MOQ:
1 set machine.
If you need machine with your own specification, logo, packing, etc, please negotiate with us.
4. Shipping:
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS
