Super Quality 20X Infinity Plan Achromat Objective Lens

Product Description

Product Description

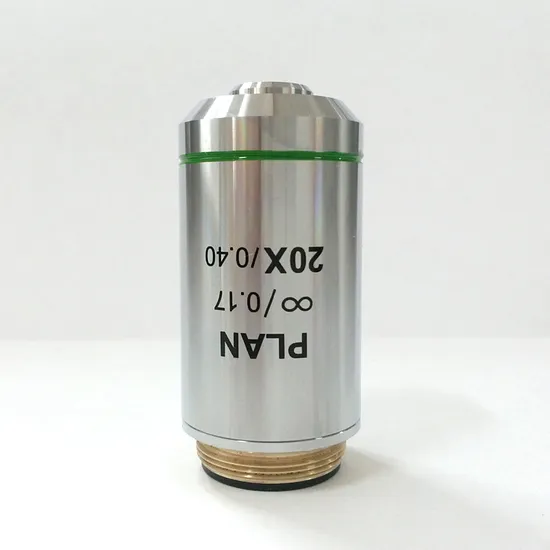

Infinite Corrected Plan achromatic Objective Lens 20X
The Infinite Plan Achromat series microscope objectives provide incredible image flatness over the entire field of view, with chromatic aberration corrected throughout the entire visible spectrum. These objectives are suitable not only for routine laboratory work but for photomicrography. our objective clarity and resolution are the class .Other Plan achormatic infinity objective lens 4X 10X 40X 60X 100X are available

	Model Magnification	Numerical Aperture (N.A.)	Working Distance(mm)	Cover glass thickness(mm)	Working Type
Infinity Plan Objective	4X	0.1	17.3	-	Dry
	10X	0.25	10	0.17	Dry
	20X	0.4	5.1	0.17	Dry
	40X	0.65	0.54	0.17	Dry
	60X	0.85	0.14	0.17	Dry
	100X	1.25	0.13	0.17	OIL

Related other items
We Also provide other series microscope objective lens as follow:
1.Series DIN Achromatic objectives 4X 10X 20X 40X 60X 100X
2.Series DIN Achromatic objectives 4X 10X 20X 40X 60X 100X
3.Series DIN Semi Plan Achromatic objectives 4X 10X 20X 40X 60X 100X
4.Series DIN Infinite Plan Achromatic objectives 4X 10X 20X 40X 60X 100X
5.Special Objectives such as dark field objective 100X with iris cone, dark field 100X objective with Iris diaphragm, series phase contrast objectives, fluorescent objectives and so son. and there are many different apperance such as silver colour shell, black colour shell, frosted silver colour and so on, and the objective appearance can be customized according to customer requirements Packaging & Shipping
For bulk package, We select shockproof packaging to provide multi-protection.
1. Every objective will be threaded on and put into a plastic bottle which could keep objective from swinging.
2. Put plastic bottle into a special foam box which could provide the repeat protection.
3. Every carton contains 1 foam boxes including 100pcs objectives , fragile labels and shipping mark will be sticked on the carton side

---
