Optic Fiber Pre-Terminated Waterproof Pigtail Cable, 4 Core Waterproof Fiber Pigtail

Product Description

Optic Fiber Pre-terminated Waterproof Pigtail Cable, 4 Core Waterproof Fiber Pigtail
Description

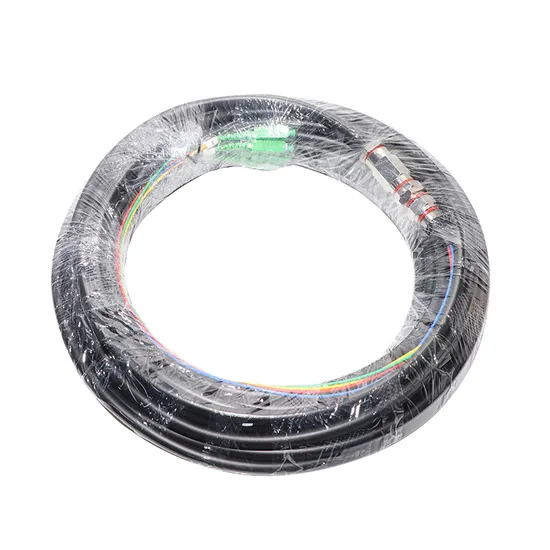

Waterproof fiber optic pigtail is made up with high quality connector, high quality waterproof fiber optic cable and qualified waterproof copper joint assembly. It features high environmental suitability, easy installation, a long lifetime, high tensile strength and sound grounding. Due to great water resistance, the fiber pigtail can also work normally even in many harsh conditions. The waterproof optical fiber pigtail can be equipped with different connectors such as FC,SC,LC,ST,MU,MTRJ,SMA...according to customers' specific requirements.
Waterproof fiber optic pigtail is a fiber optic component that has a durable and waterproof fiber optic connector installed on one end and a length of exposed fiber at the other end. Fiber optic pigtails are used to connect the major optical cable lines and the optical receivers in optical fiber communication systems.
Characteristics
1. Fiber core: 2, 4, 6, 8,12 24 or customized
2. Waterproof features & reliable performance
3. Pull & erosion resistance, good grounding
4. Low insertion loss, high return loss, excellent exchangeability, high stability
5. The cable and pigtail is not moved when tighten the connection screw, which ensure the convenient construction.
Application scope of the product
The data transfer.
Telecommunication network.
Test equipment.
Mixer broadband network.
CATV
Advantages of products
High reliability and stability
High echo loss, low insertion loss
Good interchangeability
PRODUCT PARAMETERS

Mode	Single mode		Multimode
Polish	UPC	APC	PC
Insertion Loss	≤0.30dB	≤0.20dB	≤0.20dB
Return Loss	≥50dB	≥60dB	≥30dB
Test Wavelength	1310/1550nm		850/1310nm
Durability(500 Matings)	≤0.2dB
Operating Temperature	-40ºC~+60ºC
Storage Temperature	-45ºC~+85ºC
Fire Resistant	IEC 60794-2-30
Standards-Compliant	ROHS,IEC and GR-326

---
