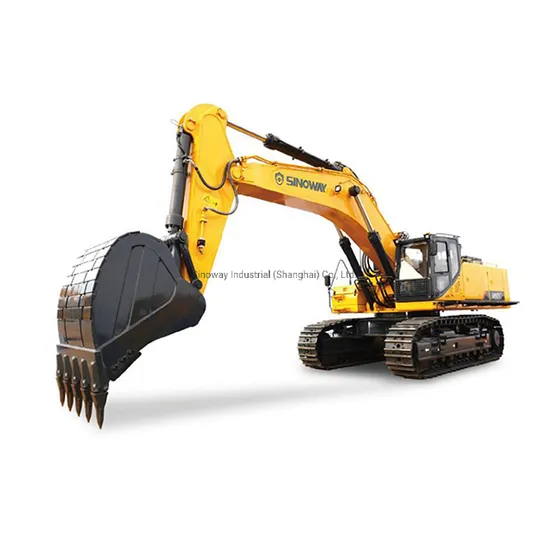

70 Ton Hydraulic Crawler Excavator for Surface Mining

Product Description

Product Description
With X-shaped frame built from high strength tensile steel, the SWME700's undercarriage is designed to withstand the toughest conditions. Continuous digging, lifting and loading can put excessive stress on machines. The swme700 has a long track beam and crawler system that guarantees greater stability. The structure also helps protect key components such as the travel motor from undue stress.
The undercarriage components are tougher too. Heavy duty rollers, reinforced idler frame and optional full track guard guarantee the integrity of our undercarriage. It's this core strength that enables our customers to keep working and earning - around the clock.
The upper structure of the swme700 is built around a reinforced and well-engineered H-beam, allowing the boom to be mounted exactly in the center of the machine. This central positioning helps the boom cope with more stress on the attachment group. It also means better distribution of weight and tension along the entire machine.
The swme70's features a tougher, reinforced heavy duty boom and arm built from high-strength tensile steel, with castings and forgings in high stress areas for heavy-duty performance and maximum uptime. We also use over-sized pins to allow the swme700 not just to work harder, but to work harder for longer. Our confidence in our machines is underlined by one of the most comprehensive warranties in the industry.
Sinoway treat Service as a significant segment in our value chain, from the moment you get in touch with Sinoway, our commitment to service is a complete guarantee that we will make every effort to be there for you. That is our pledge to you. We wish to not just satisfy but surpass the expectations of our customers.
Product Show
Specification

Engine
Model	Cummins
Type	Six-cylinder,water-cooled, turbocharged,mechanical injection
Rated power	336KW
Rated speed	1800rpm
Max.Torque	2102N.m/1400rpm
Main Technical Specification
Operating weight	68000Kg
Standard bucket capacity	3.5m³
Slewing speed	7rpm
Stick digging force	300KN
Bucket digging force	363KN
Travelling System
Travelling speed	3.0~4.2km/h
Grade ability	60%
Ground pressure	0.0991Mpa
Dimensions
Overall length	11940mm
Overall width	4280mm
Overall height of boom	4700mm
Counterweight clearance	1552mm
Ground clearance	853mm
Upperstructure width	3260mm
Rear-end length/Slewing radius	3900mm
Overall track length	5955mm
Track length on ground	4680mm
Track gauge	2800/3350mm
Track width	650mm
Boom slewing angle(L/R)	0o
Operating Scope
Arm length	2900mm
Max. cutting height	11350mm
Max. dumping height	7370mm
Max. digging depth	6900mm
Max. reach	11580mm
