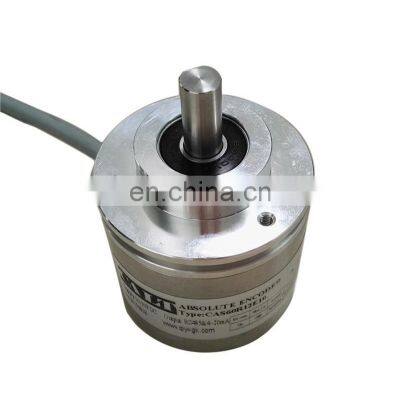

Chinese Absolute rotary Encoder Modbus RTU Output 12 bit single turn encoder
Features:
* Internal absolute code disk. Digital valued. Signal is resistant from temperature and mechanical movement. No zero drift.
* Modbus RTU output.
* Each lap 12 high resolution encoder, 4096 times in a row, working range.
* Direction setting External setting line can preset the position. Convenient installation and no need positioning.
* Wide working voltage ,low power consumption.
* Clamping flange or synchronous flange.
Product Description
Specification
Operating Voltage
| 10-30Vdc polarity protection
|
Current Consumption
| < 40Ma (24V power supply) no load
|
Output Signal
| Modbus RTU output
Conform to the standard of GB/Z19582
Settable for length/ angle /velocity measurement
|
Linearity Resolution
| 1/4096
|
Repeatability Precision
Signal adjustment
| Repeatability ±2BIT( Actual precision related with installation and shaft concentricity.) Resolution or direction settable,
external setting line preset functiion.
|
Operating Temperature
| -25—80℃ Programming temperature range：0℃～＋70℃
|
Storage Temperature
Protection class
Vibration & shock
| -40—80℃
IP67 for housing IP65 for shaft
20g，10～2000Hz；100g，6ms
|
Permissible Rotation Rate
| 2400rpm
|
Connection Cable
| 1m 8-core shielded cable.
|
Overall Feature
| Clamping flange or synchronous flange, metal enclosure, sealed dual-bearing structure ( see attached drawing of overall dimension)
|
