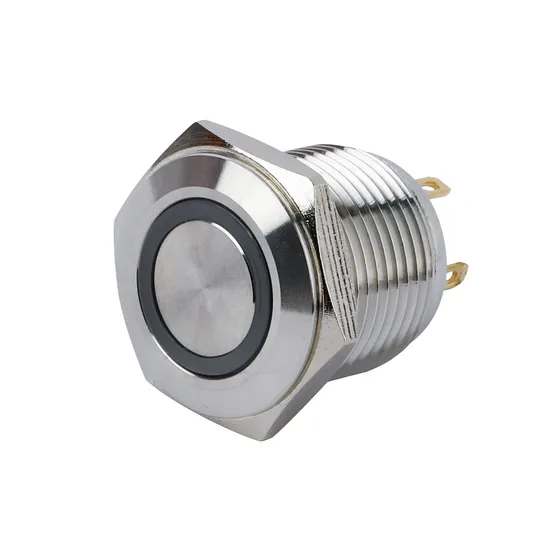

Qn16-D8 16mm Character Illuminated Type Momentary Flat Head Pin Terminal Waterproof Metal Push Button Switch

Product Description

title:QN16-D8 16mm Character illuminated Type Momentary Flat Head Pin terminal Waterproof metal push button switch
They are widely used in household appliances, electric force,telecommunications,machine tool,vessel,textile,printing,Mining machine,Mustic Instrument, etc.

Product brand		QIANNIAN
Product name		Button switch
Product model		QN16-D8
Product information	Mounting hole	16mm
	Operation types	Momentary
	Head shape	Flat Head, Pin terminal, Character illuminated Type
	Enclosure material	Nickel plated brass/Stainless Steel
	Degree of protection	IP65 IK08
Contact parameters	Switch rating	2A/36VDC
	Contact configuration	1NO
	Contact	Silver alloy,Pin terminal
Color/voltage	Optional color	R O Y G B W
	Optional voltage	6V 12V 24V 110V 220V
Other parameters	Mechanical life	50,000cyles
	Electrical life	50,000cyles
	LED life	40,000hour
	Terminal Type	Pin Terminal(2.0X0.5)
	Contact resistance	≤50mΩ
	Insylation resistance	≥1000mΩ
	Dielectric Strength	2000VAC
	Operation Temperature	-20ºC~+55ºC
	Panel thickness	1~10mm
	nut torque	5~14Nm
	Opration pressure	About2.5~4N
	Operation stroke	About2.8mm
	Base	PA66
Packages		50PCS/BOX
Website		http://qnpushbuttonswitch.en.made-in-china.com
Official website		http://qnpushbuttonswitch.en.made-in-china.com

About us Yueqing Qian Nian Electronic Co.,Ltd was founded in 2001,a technology company which is
specialized in designing and manufacturing varies types of push button switch,our company is committed
to well-known brands of companies both at home and abroad to provide first-class products and enterprises
supporting services .Company currently employs more than 160 people ,including R&D personnel and mold
production staff more than 30 people.Leading products are :Metal waterproof push button switch , metal
waterproof pilot lamp ,anti-blast switch ,and accessories.Our product are widely used in various types of
console, control box(cabinet),distribution box (cabinet),instrumentation box(cabinet),electrical apparatus,
and other industrial automation device etc.
FAQ 1.Free sample
2.DHL,UPS,TNT,Fedex,Aramex and forwarder are accept
3.Produce and purchase all connector to satify your request
4.Accept T/T in advance, Paypal, Western Union and Escrow
5.Most product not have MOQ,orders for just one piece are welcome
6.Actual drawing,picture and part No. will assist to get a competitive price soon
7.The stock goods will be delivered within 3days,and the customized goods will be delivered within 7days
Why choose us Good quality, competitive price, fast delivery .
If you have any questions,please contact with us!
Our Services 1.Provide free samples
2.Accept ODM/OEM
3.We can do CO, Form E F ect.
4.Terms of trade:EXW,FOB,CIF,CPT ect.
Contact us Contact people: Marita & Judy http://qnpushbuttonswitch.en.made-in-china.com/

---
