PLA 1.75/3.00mm Plastic Machinery Filament 3D Printer Filament Extrusion Line Extruder Machine

Product Description

:

1	Hopper dryer (15KG)	1set
2	SJ-25/28 single screw extruder	1set
3	Siemens PLC (Touch control Panel /Closed Loop system)	1set
4	Mold&die(1.75mm)	1set
5	Air cooling system for high temperature raw material	1set
6	Hot water tank for low temperature raw material or re-cooling	1set
7	Water cooling tank	1set
8	Laser Diameter measurement	1set
9	Servo haul off machine	1set
10	Servo winding machine	1set
11	Chiller	1set

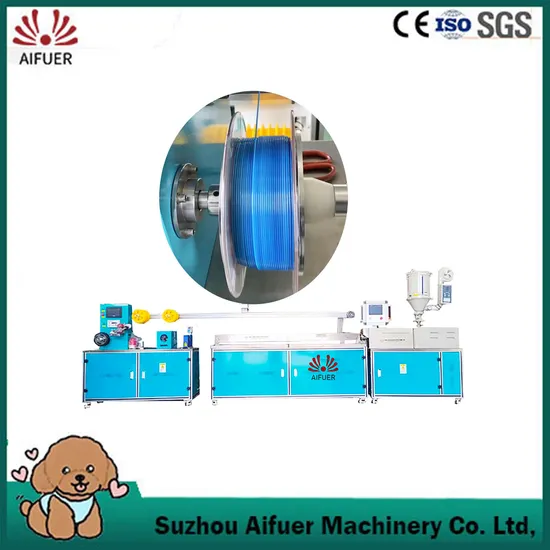

This filament extruder shown in the video is our SJ25-28. It is the same as our big filament extruder machine, adopting servowinding and tension controlled storage system.
Screw dia.:¢25mm
L/D: 28:1
Screw max. Rotation speed:72 rpm
Heating zone : 3 zones
Heating power: 1.2* 4kw
Heating ring: Stainless steel cover Heating method: Ceramic 2heater
Main motor power:2.2KW motor
Connection method for motor and reducer: Straight connection
Cabinet material:aluminium alloy
Center height: 960mm
Material: stainless steel 304
Air cooling table length: 3000mm
Forming table length: 3000mm
Air cooling platform height: 900mm
Variable frequency control
Fan outlet *4

Raw material	PLA PETG etc
Capacity	3kg/h
Filament dia.	1.75mm
Filament dia. tolerance	+/-0.03-0.05mm
Speed	Adjustable

---
