Basic Info.
Automatic Two-sided Printing
Not Support Automatic Two-sided Printing
Supply Paper Mode
Automatic
Network Function
Optional Network
Consumable Type
Thermal Paper Roll
Max. Paper Size
79.5±0.5mm
Character Structure
Full-width Characters Printers
Resolution
203 Dpi (576 Dots/Line)
Print Speed
90 mm (3.54") / S Max
Effective Printing Area
72 mm (2.83") / Line
Paper Roll Diameter
45mm Max
Paper off Method
Manual Tear
Raw Weight
275g ( Including Battery )
Transport Package
21cm(L)X15cm(W)X9cm(H)
Specification
112mm(L)x100mm(W)x52mm(H)
Trademark
EastRoyce/NEUTRAL/OEM
Production Capacity
100000sets/Year
Product Description

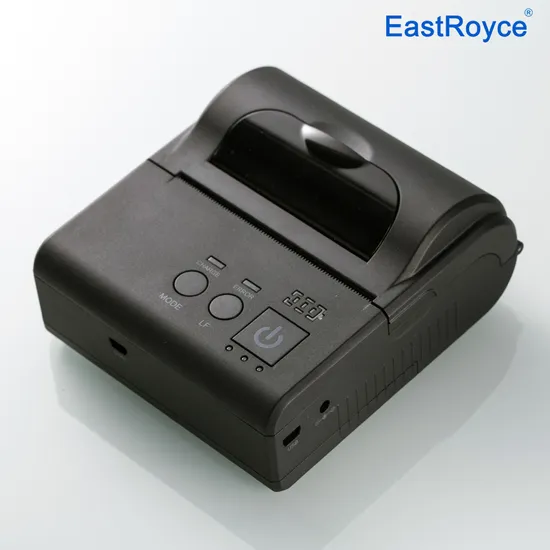

( ER-80A ) Portable 3-Inch Thermal POS Printer for restaurants
Feature:
1. V0 grade fireproof material PC/ABS.
2. Removable big capacity lithium-ion battery.
3. Easy-to-Operate Cover Opening Button.
4. Supports direct printing in multilingual text formats.
5. Loyverse Supported
6. Logo/Trademark Download and Printing supported.
7. Bluetooth supports SPP/BLE/EDR, can be connected with Android, iOS devices.
8. LED lights to indicate Charging/Paper/Power/Bluetooth connection status.
Specification
| Product name | Loyverse pos receipt printer |
| Model | ER-80A |
| Resolution | 203 dpi/576 dots |
| Printing Method | Direct Thermal |
| Max.Print Speed | 90 mm (3.54") / s Max. |
| Max.Print Width | 72 mm (2.83") / line |
| Character Set | Chinese: GB2312 (Optional: Big5(TaiWan), GB18030(HongKong), Shift-JIS(Japanese), Code page 949(Korean).Extended character sets: OEM850(Multilingual),OEM860(Portuguese),OEM863(Canadian-French),OEM 865(Nordic),West Europe,Greek,Hebrew,East Europe,Iran,Windows Code Page 1252,OEM866(Cyrillic#2),OEM 852(Latin2),OEM858,IranII,Latvian,Arabic,Windows Code Page 1251,OEM864 |
| Print Font | ASCII Font A:12×24, 32 characters/lineASCII Font B:9×17, 42 characters/lineChinese: 24×24, 16 characters/line |
| Code | 1D Barcode: EAN13, EAN8, UPC-A, UPC-E, Code 93, ITF Codabar, Code 39, Code 1282D Code: QRCODE |
| Emulation | ESC/POS+ additional unique commands |
| Paper Width | 79.5±0.5mm |
| Paper Roll Diameter | Φ<=45mm |
| Paper Loading | Easy paper loading |
| Paper Off Method | Manual tear |
| Print Head Life | 50km (printing rate 25% max) |
| Data Buffer | 32K bytes |
| NV Flash | 64K bytes |
| Interface | Standard: USB+Bluetooth 2.0+RS232 Serial |
| Raw Weight | 275g ( Including battery ) |
| Driver | Windows/Linux/Mac |
| SDK | Windows/Android/iOS |
| Battery | 7.4V/2000mAh rechargeable lithium-ion battery |
| Input | AC 100-240V, 50-60Hz |
| Output | DC 9V/1.5-2A |
| Accessories (Standard) | Manual guide, USB cable, Power adapter & Power cable, Paper roll |
| Factory (Optional) | Pouch, Serial cable |
Applications
Mobile POS Receipt/Traveling Sales/Delivery/Transportation Slip/Ticketing Management/Logistics/Restaurant/Hotel/Commercial/Retail Business/Taxi meter/Barcode/Logistics/Warehousing/Distribution/Healthcare/Remote Fault Recording/Hospitality/Parking/Utility Billing/Field Sales and Service/Material Management/Financial/Lottery...
Packaging & Shipping
Quick delivery: Sample within 1~2days; Wholesales 3~7days; OEM 7~10days.
Company Profile
EastRoyce has a high tech R&D team, most of engineers have more than 10 years developing experiences which cover hardware design, Windows application, Linux application, Android application, iOS application. And EastRoyce is already one of Apple authorized MFi program members.
EastRoyce has independent professional production line for each kind of product to assure our production capability and quality control, our production lines can produce 120,000pcs barcode scanners per month, 150,000pcs thermal printers , 8,000pcs pos systems per month, and 50,000pcs mini printer per month.
EastRoyce has already developed as a powerful one-stop supplier for POS peripherals. We always believes that best product comes with best designing first,then best materials purchasing control,and finally the best manufacturing process control. With our professional passionate high-tech team, we are capable of providing OEM services for customers all over the world.
FAQ
1. Are you a Trader or Manufacturer ?
We are Manufacturer and Developer of Thermal printer. We have innovative R&D team and professonal manufacturing team.
2. MOQ
No MOQ limit for the standard products, but the unit price is different, bigger quantity better price. If you need customization, you can discuss it with us directly.
3. Can I have Samples for Testing ?
After customers confirmed the specification, we are very glad to provide samples for testing. All samples should be paid before shippment. When you order in bulk, we can refund the cost of the sample or send you more products.
5. Payment
Paypal, western union, T/T in advance, Alipay..., for more payment methods please contact us directly.
6. Warranty
One year warranty. During warranty period, if there is damage/failure caused by non-human factor, EastRoyce will be responsible for repairing for free. If warranty period is expired, EastRoyce will continue to provide services with reasonable price to the customer. For mass order, we would like to supply some spare parts with shipment for local quickly repair. And after that, you can retumed failure parts for rework andtanalysis.
7. Shipment
We accept all kinds of shipping ways including: express, air sea, truck, or pick up by customers personally.
>>
