Top Standard Liquid 5 Gallon 20L Bottle Washing Filling Capping Machine

Product Description

Features:
-Improted flushing rotating nozzle, multi-stage pump, good flushing effict.
-PLC Controlled, completely automatic, more reliable.
-Electric and air-drive components imported from German, USA, Japan, Korea and Taiwan.
-Motive parts is air-driven, accurate.
-Filling time can be adjusted to be precise to every 0.1 second.
-Voltage DC24V, very safe.
-Stainles-steel pump & stainless steel solenoid valve, hygienic and reliable.
-Compact, small, light, low power comsumption, easy to install.
-Output: 600 bottles/hour
-Voltage: AC380V, 50Hz
-Rating Power: 7Kw
-Discharge: Q=8L/min
-Air Pressure: P=0.7Mpa/cm2
-Dimension: 6000X1500X1800mm
-Bottling capacity: 18.9L, bottle size 270 x 490 x 56mm
-Bottle capacity: 11.34L, bottle 230x420x56mm
-This machine can be fit for 3 or 5 gallon bottles.
Our Options:

ES-60BF	ES-100F	ES-200BF	ES-250BF	ES-300BF	ES-450BF	ES-600BF
Filling volume (L)	18.9/20L	18.9/20L	18.9/20L	18.9/20L	18.9/20L	18.9/20L
Bottle specification (mm)	270*490	270*490	270*490	270*490	270*490	270*490
Capacity	60	100	200	250	300	450
Air pressure (MPa)	0.5	0.5	0.5	0.5	0.5	0.5
Air consumption (L/min)	200	300	300	400	500	500
Power (kW)	1.4	2.12	3.77	6.5	7.5	7.5
Rated voltage (V)	380	380	380	380	380	380
Dimensions (L*W*H) (mm)	2200*600*1580	2500*600*1600	2500*1000*1600	2800*1000*1600	2800*1200*1600	6000*1500*1800
Weight (kg)	250	300	350	380	500	800

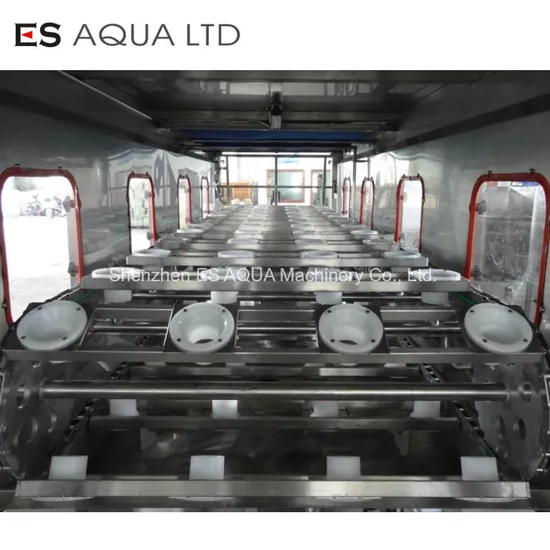

Machine Photos:
Full Line Solution:
FAQ:
Q: Are you manufacturer?
-Yes, we have been in the line over 10 years.
Q: Where is your factory?
-Our factory is located in ZhangJiagang city, Jiangsu Province.
Q: How to visit your factory?
-Fly to Shanghai Pudong Air Port(PVG) or Wuxi, we'll pick you up there.
Q: WHat's your main product?
-We mainly produce beverage bottling/canning plant, like water, juice, or carbonated drinks.
As well as injection molding machine, molds, preforms, caps, labels, films, etc.
Q: Can I get a sample of your product?
-Sure, as you wish.
Q: What's the software you will use to check the drawing? And what's the format of drawing you can check?
-Our designers and engineers all use AUTO CAD to check 2D or 3D drawings.
-We can check the drawings with PDF, AI, DWG(CAD) and STP(3D) or IGS(3D) formats.
Q: How do you pack cargo?
-New seaworthy carton for preforms/caps/labels.
New durable wooden case for machines/molds.

---
