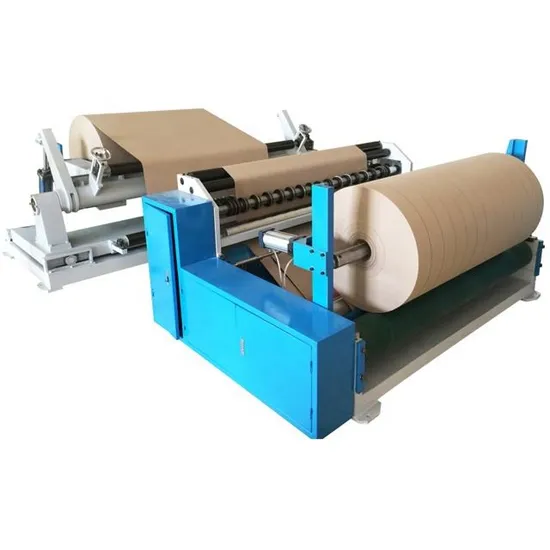

Slitter Rewinder Machine Paper Roll Slitting Rewinding Machine Cffq-200

Product Description

Product Description Usage: CFFQ-200 Jumbo Paper Slitting Rewinding Machine is suitable for Kraft paper; Tea paperboard; Bobbin paper; Art paper etc.

Features:
1. Double blades (upper blades and down blades) slitting. Cutting edges are more smooth and neat.
2. Adopt shaftless material loading device which can bear 2000kgs weight.
3. Pneumatic loading and unloading system; material paper roll loading and finished rolls unloading to be automatically.

Technical Parameters

Technical Parameter		Control System
Material Paper	60-600gsm	Main Motor	15kw Wannan
Unwind Width	600-1600mm	Inverter	18.5KW Delta
Unwind Diameter	1400mm (standard)	Electrical Components	CHNT
Rewind Diamter	1400mm (standard)	Pneumatic Components	Jingwei
Minimum Slitting Width	40mm	Bearing	Haerbin
Working Speed	0-200 meters/min	PLC	Xinjie
Speed regulation	By Inverter	Control Panel	Touch Screen
Material Loading Device	Shaftless Device	Power Supply	380V / 3phases / 50Hz
Loading Type	Automatically by Hydraulic
Rewinding Type	Air Inflation Shaft	Configuration
Unloading Type	Automatically by Pneumatic	Inflation Cone	1 Set (76mm ID)
Power Supply	380V/3Phase/50Hz (can be customized)	Lifting Air Cylinder	1 Set
		Discharging Air Cylinder	1 Set
Size		Material Shafts Braking Device	1 Set
Mainframe (two parts)	3000*1700*1100mm (Rewinding side)
		Blades	20 Sets (standard)
	3300*1200*1200mm (Unwinding side)	Operating Box	1 Set
		Curved Roll	Have
Weight	2800kgs	Meter Counter	Optional
Enclosed Spare Parts		Automatic Correcting Unit	Optional
Useful Tool	1 Set

Pictures
Hydraulic Lifting System
Shaftless Loading System by Inflation Cone;

Slitting& Rewinding Side. a. Multi Blades Slitting -- minimum slitting width is 40mm.
b. Rewinding part adopted with air inflatable shaft; finished rolls can be removed more easier.
c. Rewinding side has curved roller and finished rolls can be seperated automatically
Finished Products
