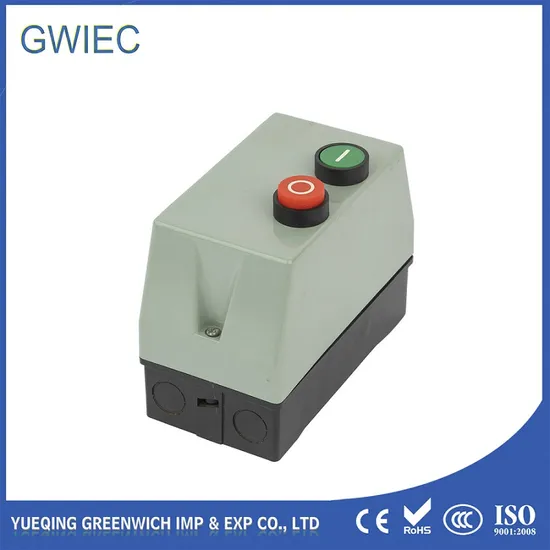

CE Standard Sliver Contact Motor Magnetic Starter (9-95A) with 1years Warranty

US$6.87-7.21 1 Piece (MOQ)

Basic Info.

Model NO.

LE1-D12

Phase

Main Circuit Rating Voltage

380V

Main Circuit Rating Current

95A

Type

Ac Contactors

Product Name

Starter

Certification

CCC, ISO: 9001, CE

Rated Voltage

up to 550V

Rated Current

9-95A

Type of Enclosure

IP42 / IP65 / IP55

OEM

Available

Standard

CE/IEC947-4-1

Trademark

GWIEC

Origin

Zhejiang, China

HS Code

8411991090

Product Description

Application
1.LE-D Series magnetic starter is mainly applied to circuit of AC 50 or Hz.voltage 550V for far distance making and breaking circuit and frequently starting and controlling motor
2.It has the features small volume,light weight,low power consumption,high efficiency safe and reliable performance
3.It complies to IEC947-4-1
Specification

Type	Rated Current(A)	Maximum Power AC3 duty (KW)						Type of enclosure	SuitableThermal Relay(A)
Type	Rated Current(A)	220V 230V	380V 400V	415V	440V	500V	660V 690V	Type of enclosure	SuitableThermal Relay(A)
LE-D09	9	2.2	4	4	4	5.5	5.5	IP42 IP65	LR2 D1312 LR2 D1314
LE-D12	12	3	5.5	5.5	5.5	7.5	7.5		LR2 D1316
LE-D18	18	4	7.5	9	9	10	10		LR2 D1321
LE-D25	25	5.5	11	11	11	15	15		LR2 D1322 LR2 D2353
LE-D32	32	7.5	15	15	15	18.5	18.5	IP55	LR2 D2355
LE-D40	40	11	18.5	22	22	22	30		LR2 D3353 LR2 D3355
LE-D50	50	15	22	25	30	30	33		LR2 D3357 LR2 D3359
LE-D65	65	18.5	30	37	37	37	37		LR2 D3361
LE-D80	80	22	37	45	45	55	45		LR2 D3363 LR2 D3365
LE-D95	95	25	45	45	45	55	45		LR2 D3365

Outline size
