2 in 1 water flow sensor with TDS function, China factory can do customization with good price

Product Description

Product Description
2 in 1 water flow sensor with TDS function, China factory can do customization with good price
Product description

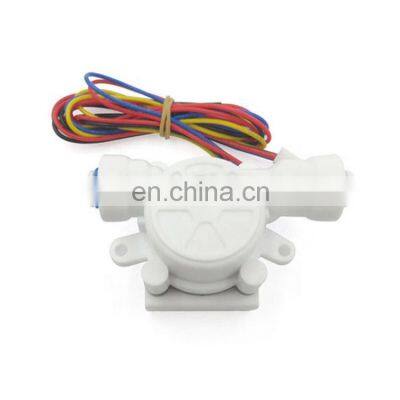

this is Hall flow type water flow sensor, to detect the water flow. Can use it in water dispenser, coffee machine, etc. Both connection ports are 1/4'', quick fitting types. This one have 2 functions---water flow and TDS monitor.
it seperates two types, big port (Dia 4mm) and small port(Dia 1mm).
Big port, flow range 0.3-10L/min
Specification

Water pressure resistant	0.35MPa	Operating voltage range	DC5 to 24V
Insulation resistance	>100MΩ	Accuracy	0.3 to 3L/min
Flow pulse characteristics	f=(24*Q)±2% Q=L/MIN	Output Pulse High Level	>DC 4.7V(Input Voltage DC 5V)
Customization	available	Output pulse space ratio	50%±10%

Small port, flow range 0.05-0.8L/min
Specification

Water pressure resistant	0.35MPa	Operating voltage range	DC5 to 24V
Insulation resistance	>100MΩ	Accuracy	0.1 to 1L/min
Flow pulse characteristics	f=(137*Q)±2% Q=L/MIN	Output Pulse High Level	>DC 4.7V(Input Voltage DC 5V)
Customization	available	Output pulse space ratio	50%±10%

Features
1, the appearance of this product is light, small size, easy to install.
2, high accurancy
Package
Normally put all of them inthe carton

---
