Ca6140 Horizontal Universal Lathe Machine Manual Lathe for Sale

Product Description

CA6140 China Horizontal Metal Lathe Manual Lathe Conventional Lathe Universal Lathe Machine
Specifications

Item	CA6140 / CA6240
Max. swing over bed	400mm
Max. swing over carriage	210mm
Max. swing in gap		630mm
Effective gap length		210mm
Max. length of workpiece	750mm Optional: 1000/1500/2000/2200/3000/4000mm
Width of bed	400mm
Section of turning tool	25x25mm
Spindle speed	16-1400rpm (24steps)
Hole through spindle	52mm
Spindle head form	ISO (GB) C6
Spindle taper	No.6 (MT6)
NO. of feed	64 kinds
Range of metric threads	(1-192mm) (44kinds)
Range of inch threads	(1-24tpi) (21kinds)
Range of module threads	0.25-48 (module 39 kinds)
Range of diametral pitc threads	1-96DP (37kinds)
Max. tailstock spindle travel	150mm
Tailstock spindle diameter	Φ75
Taper of tailstock spindle center hole	NO.5 (MT5)
Main motor power	7.5kw
Machine size	2440x1140x1750mm
Weight	1990kg

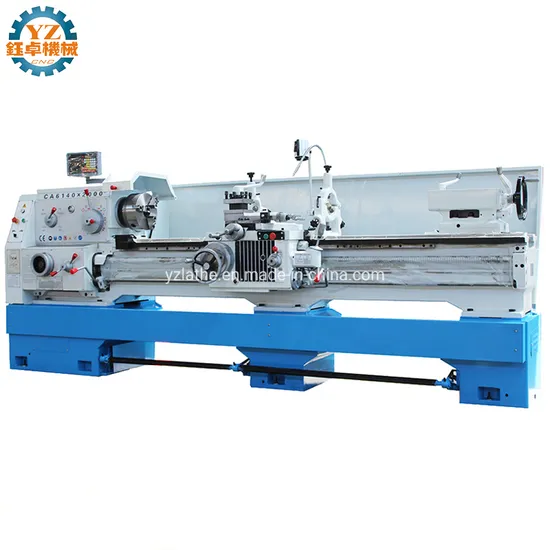

Machine Detailed Photos
Standard Configuration:
(1) 3-jaw chuck.
(2) Four station electric tool post.
(3) Manual tailstock.
(4) Cooling system.
(5) Lighten system.
(6) Automatic lubrication system.
Optional Configuration:
(1) φ320mm jaw chuck and chuck holder.
(2) Faceplate.
(3) The events leading.
(4) The center frame.
(5) With the cutting tools.
After-sale Services:
Warranty is one year. We would offer the parts (quality problem) free of charge during this period.
Company Information:
Taian Yuzhuo Machinery Co., Ltd. ( or "YZ CNC" for short) is a professional manufacturing enterprise engaged in the
research, development, production, sale and service of CNC machines.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available
to discuss your requirements and ensure full customer satisfaction.
Our main products are as below:
* Wheel Repair CNC Lathe Machine
* Vertical CNC Lathe Machine
* Horizontal CNC Lathe Machine
* Slant Bed CNC Lathe Machine
* Universal Lathe Machine
* Pipe Threading CNC Lathe Machine
* CNC Milling Machine
* CNC Vertical Machining center
All the above products have passed CE, SGS certificates.
Our Strength
* Over 18 years manufacturing experience in CNC lathe machine.
* Quality is the life of our company, and we offer you the best high value added machines.
* Export CNC machine tools to all over the world, especially to UK, US, Europe and Middle East countries.
* Customer service is the power that drives our company forward.
CE Certifications
Foreign Customers
Contact Us
If any interest about our cnc milling machine or cnc vertical machining center, please just contact us freely.
And we warmly welcome you to visit our factory at any time, thank you.

---
