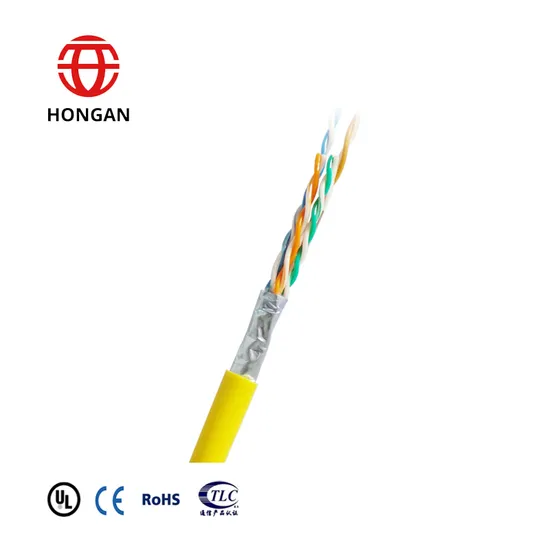

Indoor Network Cable/LAN Cable/FTP Cat5e Cable

Product Description

Product Description:
- Characteristics of product:
1.More bandwidth excess than 100MHz standard required;
2.Comply with ROHS standard;
3.Shielding performance,effectively prevent the inferference and external signals.
4.PE outer sheath,moisture-proof,ultraviolet-proof.
5.The products of special outer sheath or purpose (such as anti-rodent cable) can be designed according to customer's demands.
-Product Applications:
1.10 Base -T
2.100 Base-T4
3.100 Base -TX
4.100 Base-VG-ANYLAN
5.155 Mbps ATM
6.622 Mbps ATM
7.1000 Base-T
-Material instruction:
1.Conductor: Single strands of pure copper.
2.Insulation:Solid HDPE or Skin-Foam-Skin PE;
3.Sheath:Environment Friendly PVC or Flame Resistance PE or Low Smoke Zero Halogen Polyolefin(LSZHP).
4.Shield: Single plastic coated aluminum foil shielded.
5.Drainage wire: Tinned copper wire.
6. Wrapping tape: Polyester tape.
-Physical Electrical Characteristics:
1.D.C resistance (max):9.5Ω/100m at 20ºC;
2.Mutual capacitance(max):5.6nF/100m;
3.Dielectric strength between conductors(min):2.5KV/2s;
4.Impedance:1-100MHz 100+/- 15Ω;
5.Differential phase delay(max):30ns/100m;
6.Installation tempetature:-20ºC-+60ºC
7.Permitted bend radius:Over 8 times diameter of the cable.

Transmission Performance
Frequency(MHz)	Attenuation(Max)(dB/100m)	Next(Min) (dB/100m)	Elfext(Min)(dB/100m)	RL (Min)(dB)	Phase Velocity(Min)(m/s)	Phase delay(Max)(ns/100m)
4	4.1	54	49	18.8	0.604c	552
10	6.5	48	41	20	0.612c	545
16	8.2	45	37	20	0.614c	543
20	9.3	43	35	20	0.615c	542
31.25	11.7	40	31	18.6	0.617c	540
62.5	17.0	36	25	16.5	0.619c	539
100	22.0	33	21	15.1	0.620c	538

Detaild Picture
Advanced Production Line:
CertificationS:
Company Information:
HONGAN GROUP is China TOP 10 cables manufacturer. Specialized produce optical fiber cable, network data cable and multi pair telephone cables more than 30 years. And also EPON , GPON, Data center Solutions and Equipments.
Products had passed ISO9001 ,ISO14001 and OHSAS18001. And meet the requirements of CE,RoHS ,TLC and UL. Shipped to Thailand, Cambodia ,Burma,Vietnam,Laos,Europe,Africa and so on. More than twenty countries.
FAQ
-Q1:Are you a Factory or Trade Company?A:We are cable manufacturer with 32's years experience,welcome to visit us in your free time.Thank you.
-Q2:Where is your factory loated? How can I visit there?
A:Our factory is loated in Weihai city,Shandong Province,China.Welcome all clients to visit our factory warmly!-Q3:What kind of material we use?
A:High Quality PE,PVC,LSZH etc.
-Q4:Do you provide any sample?
A:Yes,we do pleasure to provide samples for your reviewing and testing.

---
