Stainless Steel Duplex Wire Mesh Ss 304 316/Galvanized Square Woven Filter Plain Twill Dutch Knitted Sintered Mesh for Sieving Filtering Filtration Mining Sieve

Product Description

Stainless Steel Duplex Wire Mesh SS304 316/Galvanized Square Woven Filter Plain Twill Dutch Knitted Sintered Mesh For Sieving Filtering Filtration Mining Sieve
Steel Wire Mesh, Woven Wire Mesh, Filter Mesh, Wire Mesh Screen & Stainless Steel Wire Cloth Product Description

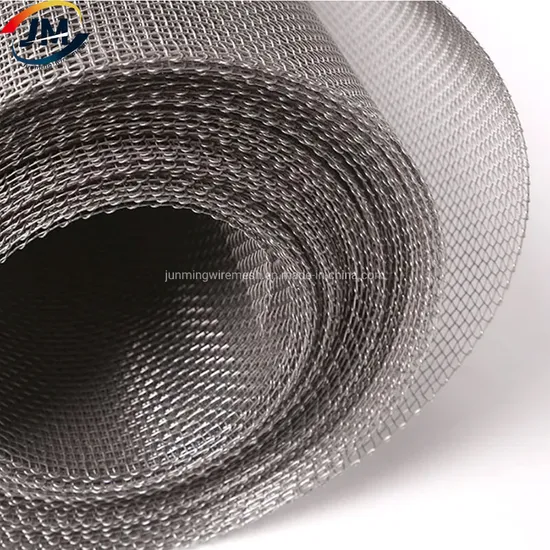

Stainless steel wire mesh is made of stainless steel wire through warp and weft woven. Mainly used for the filtration and screening of gas, liquid and solid, the separation of media and so on. With resistance for acid, alkali, high temperature and grind, it is widely used in industries like petroleum, petrochemical, automotive, new energy, food, pharmacy and others.
Material:Mainly AISI304, AISI316, AISI316L, other 201, 202, 321,430.
Weave Type: Plain weave, Twilled weave, Plain dutch weave, Twilled dutch weave, Reverse dutch weave.
Performance: Corrosion-resisting, Wear-resisting, Tear-resisting.
Uses: Mainly used for Separation and Flitration, extensively used in petroleum, chemical industry, environment protection, mine, airspacem paper-making, electronic, metallurgy etc.
Normal mesh size:
Plain weave: 0.5X0.5mesh to 635X635mesh;
Twill weave: 20X20mesh to 400X400mesh;
Plain dutch weave: 8X85mesh to 80X400mesh;
Twill dutch weave: 20X200mesh to 400X2800mesh;
Reversed dutch weave: 48X10mesh to 720X150mesh;
Wire diameter: 0.025MM-4.0MM
Roll width: Usually 1.0-2.0m;
Roll length: 30m/roll;

Plain and Twill Weave Specification of Stainless Steel Wire Mesh
Mesh/inch	Wire Diameter (mm)	Aperture (mm)		Mesh/inch	Wire Diameter (mm)	Aperture (mm)
2mesh	1.80	10.90		60mesh	0.15	0.273
3mesh	1.60	6.866		70mesh	0.14	0.223
4mesh	1.20	5.15		80mesh	0.12	0.198
5mesh	0.91	4.17		90mesh	0.11	0.172
6mesh	0.80	3.433		100mesh	0.10	0.154
8mesh	0.60	2.575		120mesh	0.08	0.132
10mesh	0.55	1.990		140mesh	0.07	0.111
12mesh	0.50	1.616		150mesh	0.065	0.104
14mesh	0.45	1.362		160mesh	0.065	0.094
16mesh	0.40	1.188		180mesh	0.053	0.088
18mesh	0.35	1.060		200mesh	0.053	0.074
20mesh	0.30	0.970		250mesh	0.04	0.061
26mesh	0.28	0.696		300mesh	0.035	0.049
30mesh	0.25	0.596		325mesh	0.03	0.048
40mesh	0.21	0.425		350mesh	0.03	0.042
50mesh	0.19	0.318		400mesh	0.025	0.0385
Width of Stainless Steel Wire Mesh: 0.6-8m. Note: Special specification can be made according to customer's requires.

Dutch Weave stainless steel wire mesh specification:
Material (AISI)	Wire diameter(MM)	Mesh
304, 316	0.58/0.40	12X64
304, 316	0.36/0.25	24X110
304, 316	0.50/0.33	14X88
304, 316	0.18/0.14	30X150
304, 316	0.14/0.11	40X200
304, 316	0.10/0.071	50X250
304, 316	0.06/0.05	80X700
304, 316	0.071/0.040	165X800
304, 316	0.05/0.032	165X1400
304, 316	0.05/0.03	200X1800
316L	0.03/0.025	325X2300
316L	0.03/0.02	400X2800

Opening type and weaving type:
Plain weave, Twill weave, dutch weave
Typical weaving patterns for stainless steel wire mesh: plain weave, twill weave, dutch weave.
Usually in 30m (up to 200) long and in width of 1m, 1.2m, 1.2m, 2.0m, 2.5m and 3.0m, 5.0m.
It could cut to strip or punched into disc as customer's requirement.
Plain Weave: also called tabby weave, linen weave or taffeta weave, is the most basic type of weaves.
In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern.
Each weft thread crosses the warp threads by going over one, then under the next, and so on.
The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
Twill weave: in a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale.
A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.
Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
Reversed Dutch Weave: difference from standard dutch weave lies in the thicker warp wires and less weft wires.
The edges of stainless steel woven wire mesh: locked closed edges and open edges.
Most sizes are in our stock, the usual width is 1.0-2.0m, the length is 30m or 30.5m, others sizes can be customized as per customer's requires.
Stainless steel wire mesh characteristics:
• Flat mesh surface
• Tightly weaved and uniform color
• Uniform mesh opening
• High and stable filtration accuracy
• Accurate control of net weight per unit area to gram
• Good formability mesh surface
• Any length can be provided by continuous loading
Related Products:
FAQ
1. Are you factory/manufacturer or trader?
We are direct factory who owns production lines and workers. Everything is flexible and there is no need to worry about the extra charges by the Middle man or trader.
2. Can I get free samples?
Yes, you can get the samples freely, if you need, special specification can be customized as your requirements.
3. Which is your minimum order quantity?
Actually there is no MOQ for our products. But usually we recommend a suitable quantity based on a good price (low freight and production cost) which is easy to accept.
4. Which payment method you can accept?
We accept T/T, L/C, Western Union, Paypal and Money Gram.
5. How long is the delivery time after payment?
Usually the delivery time is in 7-15days in stock, it is in 30days if customized products.
Why Choose Us? Professional & experienced factory (15years) • Professional quality control and design team for your goods Quick delivery time & superior quality • Made in China certified Chinese supplier and manufacturer
• Many transported ways for your choose(by train, by sea, by air)
as your requirements and goods' size and volume.

---
