Da53t Controller CNC Press Brake with High-Quality German Motor

Product Description

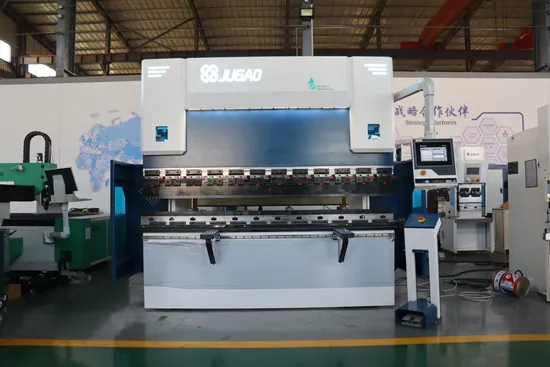

Discover the ultimate precision and power with our 80 100 200 300ton CNC Hydraulic Press Brake Machines. Perfect for intricate and robust sheet metal processing, these models feature the advanced Delem DA53T, DA58T, and DA66T controllers.
1. Benefit from a versatile multi-language CNC operating system that caters to a global user base, ensuring seamless operations and user-friendly interactions no matter where you're located.
2. Experience the tranquility and reliability with our silent internal gear pump, designed to offer efficient performance without the noise.
3. Achieve precise control with our hydraulic system, expertly regulated by advanced proportional valves for optimal performance.
4. Cutting-edge technology at your fingertips: our system combines a brushless drive with 'can open' digital technology, delivering a high precision backgauge that enables fast and accurate axis movements.
5. Ensure meticulous accuracy with our high precision optical lines, engineered for superior measurement and alignment.
6. Enjoy the flexibility of adjustable clampings, designed to adapt to various operational needs and ensure secure material positioning.
7. Utilize hardened, grinded tools, and clamps for rapid tool adjustments, enhancing efficiency and precision in your operations.
8. Maximize productivity with complete backgauge fingers mounted on a double linear guide, offering enhanced stability and accuracy.
9. Our stainless steel front supports are adjustable in height, providing customizable support tailored to your specific requirements.
10. Benefit from automatic mechanical crowning, ensuring consistent pressure distribution across your workpiece, enhancing accuracy.
11. Built to last, our electrical panel features high-quality components that ensure durability and consistent performance.
12. Stay protected with European safety standards, featuring an intuitive Start&Stop system that ensures safety without compromising efficiency.
Technical parameter

Model	Nominal Pressure (kn)	Length of table (mm)	Distance Between Housing (mm)	Throat Depth (mm)	Stroke (mm)	Open Hight(mm)	Main Motor (kw)	Dimensions (L × W × H)(mm)
40/2000	400	2000	1600	200	110	335	4	2545×1510×2050
40/2500	400	2500	2000	200	110	335	4	2950×1510×2080
63/2000	630	2000	1600	250	110	350	5.5	2555×1600×2130
63/2500	630	2500	2000	250	110	350	5.5	2960×1600×2180
63/3200	630	3200	2600	250	110	350	5.5	3740×1600×2230
100/2500	1000	2500	2000	350	150	400	7.5	2980×1650×2330
100/3200	1000	3200	2600	350	150	400	7.5	3740×1650×2355
100/4000	1000	4000	3200	350	150	400	7.5	4550×1650×2450
100/5000	1000	5000	4000	350	150	400	7.5	5100×1500×2650
125/2500	1250	2500	2000	350	150	410	7.5	3980×1650×2370
125/3200	1250	3200	2600	350	150	410	7.5	3750×1650×2450
125/4000	1250	4000	3200	350	150	410	7.5	4550×1650×2470
125/5000	1250	5000	4000	350	150	410	7.5	5100×1500×2795
125/6000	1250	6000	4500	350	150	410	7.5	6100×1500×2895
160/2500	1600	2500	2000	350	150	425	11	2980×1715×2410
160/3200	1600	3200	2550	350	150	425	11	3750×1715×2450
160/4000	1600	4000	3200	350	190	450	11	4550×1715×2730
160/5000	1600	5000	4000	350	190	450	11	5100×1570×2900
160/6000	1600	6000	4500	350	190	450	11	6100×1570×3010
200/3200	2000	3200	2600	350	240	460	11	3750×1815×2715
